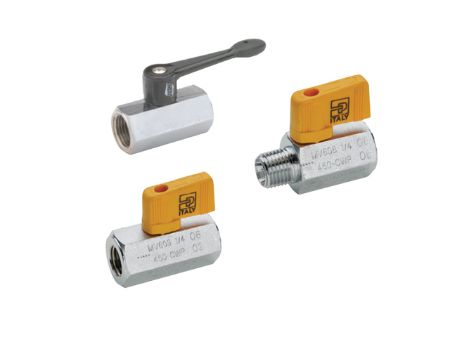

Industrial Ball Valves - Chrome Plated Brass Ball Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's industrial chrome plated brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Connection 2 Thread Size (inch) | Maximum Working Pressure (psi) | Connection 1 Thread Size (inch) | Style | Handle | Connection 1 Thread Style | Connection 2 Thread Style | Vacuum Rating (inch of Hg) | Maximum Working Pressure (Bar) | Configuration | Maximum Operating Pressure | Actuation Type | Specifications Met | Orifice Size | Ball Material | Mounting Type | Seat Material | Connection Type | Operation Type | Handle Type | Body Material | Seal Material | Connection Size | Division | Maximum Flow Rate | Maximum Operating Temperature | Minimum Operating Temperature | Product Type | Lock Type | Function | Material | Flow Diameter | Free Flow CV Factor | Pkg Qty/UOM | Thread 1 | Pkg Qty | Parker Group | Parker Division | Thread 1 | Thread 1 Type | Configuration Type | Valve Type | Series | Material | Operating Temperature | Max Pressure | Flow Diameter | Free Flow CV Factor | Material - Ball | Material - Seats/Seals | Material - Handle | Material Stem O-Ring | Thread 2 | Thread 2 Type | Thread 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MV200-2 | Backordered | 25 in stock | $26.24/each | EA | EA | 1/8 | 200 | 1/8 | Female Pipe Ends | Polyamide Lever | Female Pipe | Female Pipe | na | 13.7 | In-Line | 13.7 bar | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Lever | Chrome Plated Brass | PTFE | 1/8 inch | Fluid System Connectors Division | 1.3 Cv | 93 °C | 0 °F | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.31 Inch | 1.3 | 10 EA | 1/8 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/8 NPT | NPT | Female to Female | Ball Valve | MV200 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.31 Inch | 1.3 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | ||||
| MV200-4 | Backordered | 7 in stock | $33.23/each | EA | EA | 1/4 | 200 | 1/4 | Female Pipe Ends | Polyamide Lever | Female Pipe | Female Pipe | na | 13.7 | In-Line | 200 psi | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Lever | Chrome Plated Brass | PTFE | 1/4 inch | Fluid System Connectors Division | 4.0 Cv | 200 °F | -17 °C | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.31 Inch | 4 | 10 EA | 1/4 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/4 NPT | NPT | Female to Female | Ball Valve | MV200 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.31 Inch | 4 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | ||||
| MV200-6 | Backordered | 3 in stock | $35.08/each | EA | EA | 3/8 | 200 | 3/8 | Female Pipe Ends | Polyamide Lever | Female Pipe | Female Pipe | na | 13.7 | In-Line | 200 psi | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Lever | Chrome Plated Brass | PTFE | 3/8 inch | Fluid System Connectors Division | 3.7 Cv | 200 °F | 0 °F | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.31 Inch | 3.7 | 10 EA | 3/8 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 3/8 NPT | NPT | Female to Female | Ball Valve | MV200 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.31 Inch | 3.7 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | ||||
| MV200-8 | Backordered | 10 in stock | $38.27/each | EA | EA | 1/2 | 200 | 1/2 | Female Pipe Ends | Polyamide Lever | Female Pipe | Female Pipe | na | 13.7 | In-Line | 13.7 bar | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Lever | Chrome Plated Brass | PTFE | 1/2 inch | Fluid System Connectors Division | 5.8 Cv | 200 °F | 0 °F | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.39 Inch | 5.8 | 10 EA | 1/2 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/2 NPT | NPT | Female to Female | Ball Valve | MV200 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.39 Inch | 5.8 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | ||||
| MV608-2 | 18 in stock | 177 in stock | $22.93/each | EA | EA | 1/8 | 450 | 1/8 | Male to Female Pipe Ends | Polyamide Wedge Lever | Male Pipe | Female Pipe | 28 | 31 | In-Line | 31 bar | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 1/8 inch | Fluid System Connectors Division | 1.2 Cv | 93 °C | 0 °F | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.2 Inch | 1.2 | 10 EA | 1/8 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/8 NPT | NPT | Male to Female | Ball Valve | MV608 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.2 Inch | 1.2 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | 1/8 NPT | NPT | 1/8 NPT | |
| MV608-4 | 55 in stock | 1590 in stock | $25.05/each | EA | EA | 1/4 | 450 | 1/4 | Male to Female Pipe Ends | Polyamide Wedge Lever | Male Pipe | Female Pipe | 28 | 31 | In-Line | 450 | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 1/4 | Fluid System Connectors Division | 5.8 | 200 | 0 | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.31 Inch | 5.8 | 10 EA | 1/4 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/4 NPT | NPT | Male to Female | Ball Valve | MV608 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.31 Inch | 5.8 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | 1/4 NPT | NPT | 1/4 NPT | |
| MV608-6 | 83 in stock | 814 in stock | $27.36/each | EA | EA | 3/8 | 450 | 3/8 | Male to Female Pipe Ends | Polyamide Wedge Lever | Male Pipe | Female Pipe | 28 | 31 | In-Line | 450 psi | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 3/8 inch | Fluid System Connectors Division | 3.9 Cv | 93 °C | 0 °F | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.31 Inch | 3.9 | 10 EA | 3/8 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 3/8 NPT | NPT | Male to Female | Ball Valve | MV608 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.31 Inch | 3.9 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | 3/8 NPT | NPT | 3/8 NPT | |
| MV608-8 | 59 in stock | 680 in stock | $28.23/each | EA | EA | 1/2 | 450 | 1/2 | Male to Female Pipe Ends | Polyamide Wedge Lever | Male Pipe | Female Pipe | 28 | 31 | In-Line | 31 bar | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 1/2 inch | Fluid System Connectors Division | 5.6 Cv | 93 °C | -17 °C | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.39 Inch | 5.6 | 10 EA | 1/2 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/2 NPT | NPT | Male to Female | Ball Valve | MV608 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.39 Inch | 5.6 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | 1/2 NPT | NPT | 1/2 NPT | |
| MV609-2 | 24 in stock | 220 in stock | $23.91/each | EA | EA | 1/8 | 450 | 1/8 | Female Pipe Ends | Polyamide Wedge Lever | Female Pipe | Female Pipe | 28 | 31 | In-Line | 31 bar | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 1/8 inch | Fluid System Connectors Division | 1.4 Cv | 200 °F | -17 °C | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.24 Inch | 1.4 | 10 EA | 1/8 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/8 NPT | NPT | Female to Female | Ball Valve | MV609 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.24 Inch | 1.4 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | ||||
| MV609-4 | 52 in stock | 684 in stock | $25.25/each | EA | EA | 1/4 | 450 | 1/4 | Female Pipe Ends | Polyamide Wedge Lever | Female Pipe | Female Pipe | 28 | 31 | In-Line | 450 psi | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 1/4 inch | Fluid System Connectors Division | 4.3 Cv | 93 °C | 0 °F | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.31 Inch | 4.3 | 10 EA | 1/4 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/4 NPT | NPT | Female to Female | Ball Valve | MV609 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.31 Inch | 4.3 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | ||||
| MV609-6 | 38 in stock | 428 in stock | $25.21/each | EA | EA | 3/8 | 450 | 3/8 | Female Pipe Ends | Polyamide Wedge Lever | Female Pipe | Female Pipe | 28 | 31 | In-Line | 31 bar | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 3/8 inch | Fluid System Connectors Division | 3.6 Cv | 200 °F | -17 °C | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.31 Inch | 3.6 | 10 EA | 3/8 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 3/8 NPT | NPT | Female to Female | Ball Valve | MV609 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.31 Inch | 3.6 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon | ||||
| MV609-6-4 | Backordered | 4 in stock | $48.19/each | EA | 1/4 | 450 | 3/8 | Female Pipe Ends | Polyamide Wedge Lever | Female Pipe | Female Pipe | 28 | 31 | In-Line | 450 psi | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 3/8 x 1/4 inch | Fluid System Connectors Division | 3.6 Cv | 93 °C | 0 °F | Ball Valve | Non-Locking | 2-Way | |||||||||||||||||||||||||||
| MV609-8 | 27 in stock | 417 in stock | $28.23/each | EA | EA | 1/2 | 450 | 1/2 | Female Pipe Ends | Polyamide Wedge Lever | Female Pipe | Female Pipe | 28 | 31 | In-Line | 31 bar | Manual | N/A | N/A | Chrome Plated Brass | In-Line | PTFE | NPT | on/off | Compact | Chrome Plated Brass | PTFE | 1/2 inch | Fluid System Connectors Division | 6.0 Cv | 93 °C | -17 °C | Ball Valve | Non-Locking | 2-Way | Chrome Plated Brass | 0.39 Inch | 6 | 10 EA | 1/2 NPT | 10 | Fluid Connector | Fluid Systems Connector (Brass Products) | 1/2 NPT | NPT | Female to Female | Ball Valve | MV609 | Chrome Plated Brass | 0°F to +200°F | 14 Bar (200 PSI) | 0.39 Inch | 6 | Chrome Plated Brass | PTFE | Plastic | Fluorocarbon |
