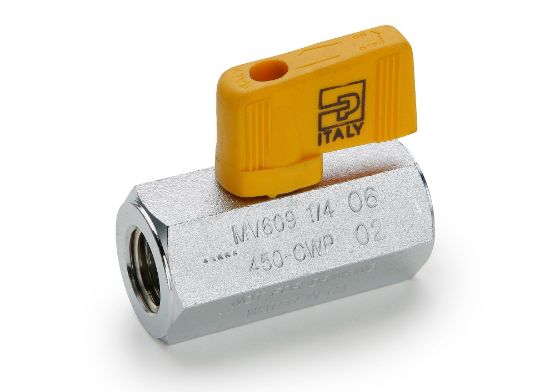

MV609-6-4 - Industrial Ball Valves - Chrome Plated Brass Ball Valves

Parker's chrome plated brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	4 in stock

SKU MV609-6-4

$48.19/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Connection 1 Thread Size (inch)	3/8	Style	Female Pipe Ends
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Handle	Polyamide Wedge Lever	Vacuum Rating (inch of Hg)	28
Maximum Working Pressure (Bar)	31	Maximum Working Pressure (psi)	450
Function	2-Way	Product Type	Ball Valve
Lock Type	Non-Locking	Connection Size	3/8 x 1/4 inch
Maximum Flow Rate	3.6 Cv	Seal Material	PTFE
Maximum Operating Temperature	93 °C	Minimum Operating Temperature	0 °F
Ball Material	Chrome Plated Brass	Specifications Met	N/A
Mounting Type	In-Line	Maximum Operating Pressure	450 psi
Configuration	In-Line	Actuation Type	Manual
Handle Type	Compact	Orifice Size	N/A
Division	Fluid System Connectors Division	Connection Type	NPT
Seat Material	PTFE	Body Material	Chrome Plated Brass
Operation Type	on/off
