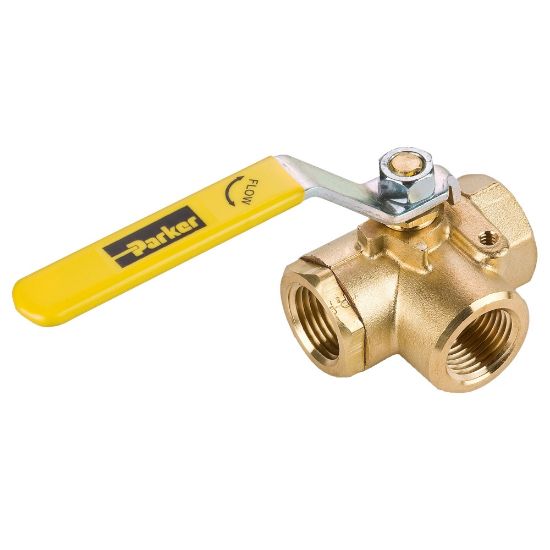

V533P-4-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU V533P-4-04

$100.15/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Maximum Working Pressure (psi)	600	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Connection 1 Solder O.D. (inch)	na
Handle	Tee Handle	Shape	3-Way
Style	Female to Female to Female	Actuation Type	Manual
Orifice Size	.38	Configuration	Female-Female-Female Pipe Ends
Mounting Type	Panel, In-Line	Ball Material	Chrome Plated Brass
Shape	3-Way Diversion	Operation Type	n/a
Body Material	Brass	Maximum Operating Pressure	27
Handle Type	Tee	Maximum Operating Temperature	350
Seal Material	PTFE	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread Solder	Maximum Flow Rate	n/a
Seat Material	PTFE	Minimum Operating Temperature	-20
Product Type	3 Way Diversion Brass Series 533 Ball Valve	Connection Size	1/4
Function	2-Way, Normally Closed, Normally Open
