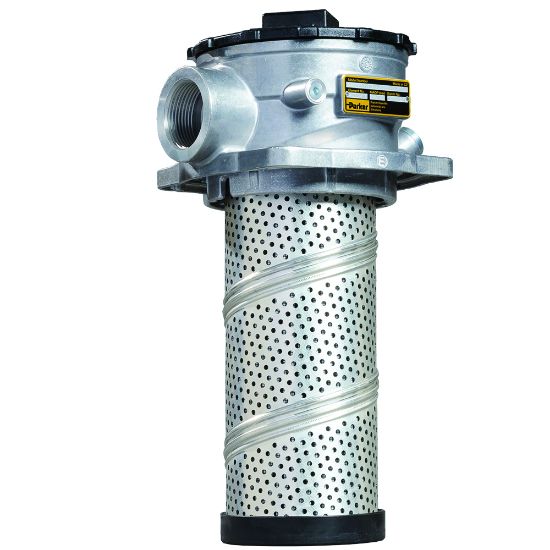

GLF2110QBPIS161 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GLF2110QBPIS161

$195.58/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	10Q Microglass	Options	None
Port Connection Type	SAE-16	Indicator Type	Port plugged
Bypass Valve (psi)	35	Flow Rate (gpm)	95
Weight	3.18 kg	Indicator Pressure Setting	1.9 bar
Filter Element Type	Cartridge	Pressure Rating	10.3 bar
Mounting Type	Tank Mounted	Flow Rate	95 Gal/min
Port Type	SAE-16	Housing Material	Cast Aluminum Alloy
Indicator Type	Port Plugged	Compatible Element	946433Q
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Maximum Operating Temperature	225 °F
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Seal Material	Nitrile	Bypass Valve Pressure Rating	2.4 bar
