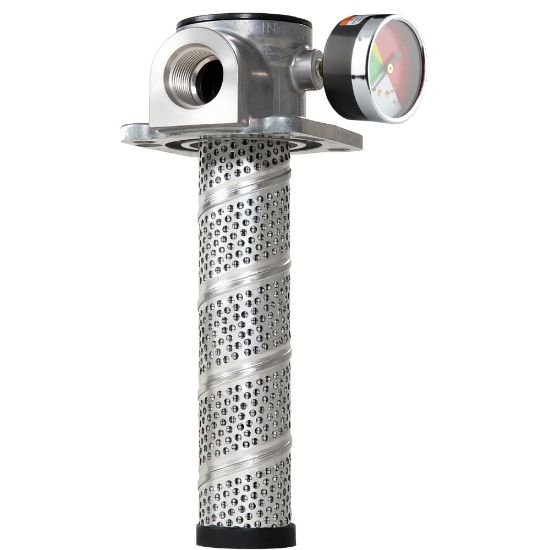

PT2202QBGGS12W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT2202QBGGS12W

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	25 gpm (94.6 lpm)
Port Connection Type	SAE-12	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Filter Element Type	02Q Microglass	Seal Material	Nitrile
Indicator Type	Pressure gauge, 25 psi	Options	Steel weld ring
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	15 psi
Housing Material	Aluminum	Flow Rate	94.6 L/min
Maximum Operating Temperature	107.0 °C	Seal Material	Nitrile
Weight	1.07 lb	Options	Tank Mounted
Mounting Style	Tank Mounted	Filter Element Type	02Q Microglass
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Compatible Element	936754
Indicator Type	Pressure gauge, 25 psi	Indicator Pressure Setting	Steel Weld Ring
Bypass Valve Pressure Rating	1.7 bar
