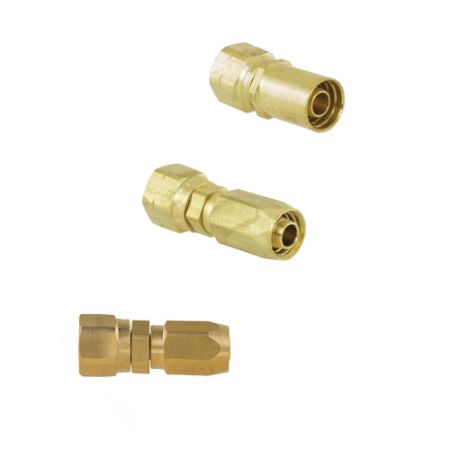

Marine Hose Fittings – MS Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker MS series brass hose fittings, designed for use in hydraulic marine steering applications, are available in both permanent crimp and field attachable constructions for corrosion resistance in fresh water and salt water environments. They are qualified for use with Parker MSH (Marine Steering Hose) and available in both 5/16” (-5) and 3/8” (-6) sizes. When connected to the commonly used brass adapters, galvanic corrosion is also minimized with the brass MS series hose fittings.

Markets:
• Marine

Features/Benefits:
• Parkalign® dies

Applications:
• Hydraulic marine steering systems
- Outboard motors

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Body Material	Shape	Connection 2 Size	Connection 2 Type	Connection 1 Hose Inside Diameter	Division	Shape	Industry	Division	For Fluid Type	Connection 2 Size	Coating	Connection Length	Technology	Product Type	Hex Size	Connection 1 Size	Connection 2 Type	Hex Size 2	Brand	Specifications Met	Configuration	Application	Fitting Length	Maximum Operating Pressure	Connection 1 Type	Body Material	Hex Size 1
108MS-6-5B	Backordered	103 in stock	$25.44/each	EA	BRASS	Straight	5/8"-18	Permanent Crimp, Female SAE 45° - Swivel	5/16" (I.D.)	Parflex Division	Straight	Marine	Parflex Division	Petroleum Hydraulic Fluids	5/8"-18 inch Thread	n/a	29 mm	Fluid & Gas Handling	Hose Fittings	5/8 inch (see drawing legend H)	8 mm	45° Flare SAE	13/16 inch (see drawing legend J)	Parker	n/a	Hose to Port	Medium Pressure Hydraulics	45 mm (see drawing legend A)	103 bar	Hose	Brass
1TFMS-6-5B	Backordered	400 in stock	$26.59/each	EA	BRASS	Straight	9/16"-24	Permanent Crimp, Marine Tube	5/16" (I.D.)	Parflex Division	Straight	Marine	Parflex Division	Water	9/16"-24 inch Thread	n/a	1-1/16 inch Cut-off allowance	Fluid & Gas Handling	Hose Fittings	3/4 inch (see drawing legend J)	-5 (Size)	Tube Connector	5/8 inch (see drawing legend H)	Parker	n/a	Hose to Port	Marine	43 mm (see drawing legend A)	103 bar	Hose	Brass
208MS-6-5B	Backordered	88 in stock	$29.90/each	EA	BRASS	Straight	5/8"-18	Field Attachable, Female SAE 45° - Swivel	5/16" (I.D.)	Parflex Division	Straight	Marine	Parflex Division	Petroleum Hydraulic Fluids	5/8"-18 inch Thread	n/a	33 mm	Fluid & Gas Handling	Hose Fittings	13/16 inch (see drawing legend H)	5/16 inch Hose I.D.	Field Attachable	5/8 inch (see drawing legend W)	Parker	n/a	Hose to Port	Medium Pressure Hydraulics	2.06 inch	103 bar	Hose	Brass	5/8 inch (see drawing legend J)
208MS-6-6B	Backordered	7 in stock	$36.33/each	EA	BRASS	Straight	5/8"-18	Field Attachable, Female SAE 45° - Swivel	3/8 (I.D.)	Parflex Division	Straight	Marine	Parflex Division	Lubricants (Oils)	5/8"-18 inch Thread	n/a	37 mm	Fluid & Gas Handling	Hose Fittings	13/16 inch (see drawing legend H)	3/8 inch Hose I.D.	Field Attachable	5/8 inch (see drawing legend W)	Parker	n/a	Hose to Port	Marine	2.37 inch	103 bar	Hose	Brass	5/8 inch (see drawing legend J)
2TFMS-6-5B	Backordered	97 in stock	$37.43/each	EA	BRASS	Straight	9/16"-24	Field Attachable, Marine Tube	5/16" (I.D.)	Parflex Division	Straight	Marine	Parflex Division	Lubricants (Oils)	9/16"-24 inch Thread	n/a	33 mm	Hydraulics	Hose Fittings	3/4 inch (see drawing legend H)	8 mm	Tube Connector	5/8 inch (see drawing legend W)	Parker	n/a	Hose to Port	Marine	51 mm (see drawing legend A)	1500 psi (Dependent on hose)	Hose	Brass	5/8 inch (see drawing legend J)
