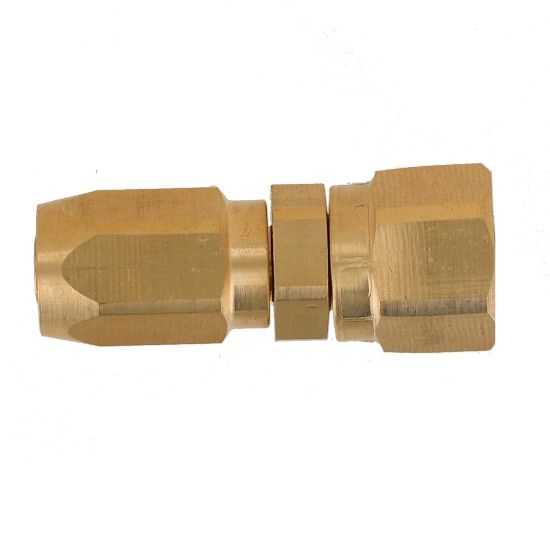

2TFMS-6-5B - Marine Hose Fittings – MS Series

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	97 in stock

SKU 2TFMS-6-5B

$37.43/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Shape	Straight	Connection 1 Hose Inside Diameter	5/16" (I.D.)
Connection 2 Size	9/16"-24	Connection 2 Type	Field Attachable, Marine Tube
Division	Parflex Division	Shape	Straight
Industry	Marine	For Fluid Type	Lubricants (Oils)
Division	Parflex Division	Connection 2 Size	9/16"-24 inch Thread
Configuration	Hose to Port	Body Material	Brass
Connection 1 Type	Hose	Fitting Length	51 mm (see drawing legend A)
Maximum Operating Pressure	1500 psi (Dependent on hose)	Hex Size 2	5/8 inch (see drawing legend W)
Hex Size 1	5/8 inch (see drawing legend J)	Connection 2 Type	Tube Connector
Connection 1 Size	8 mm	Hex Size	3/4 inch (see drawing legend H)
Application	Marine	Specifications Met	n/a
Brand	Parker	Connection Length	33 mm
Coating	n/a	Product Type	Hose Fittings
Technology	Hydraulics
