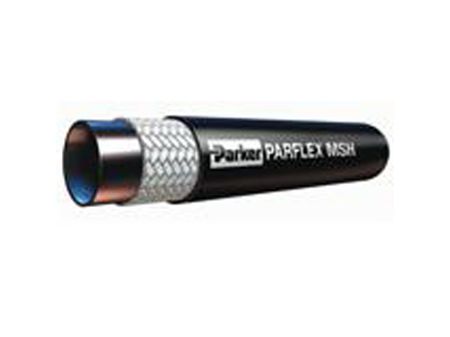

Marine Hose – Steering
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
MSH hose is a thermoplastic hose for marine steering applications, specifically, outboard hydraulic steering systems where fast accurate response is needed to ensure proper control of the boat. MSH hose is a marine grade hose with a corrosion resistant, thermoplastic construction. It is ideal for salt water and fresh water environments.
Parker MSH hose is qualified with both permanent and field attachable brass fittings.
Markets:
• Marine
Features/Benefits:
• Fast, accurate response
• Permanent or field attachable brass fittings
• Corrosion resistant thermoplastic construction
Applications:
• Marine steering systems
Technical Specifications:
• Cover: Non-perforated
• HBR bend restrictor is available for permanent fittings only
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Parker MSH hose is qualified with both permanent and field attachable brass fittings.
Markets:
• Marine
Features/Benefits:
• Fast, accurate response
• Permanent or field attachable brass fittings
• Corrosion resistant thermoplastic construction
Applications:
• Marine steering systems
Technical Specifications:
• Cover: Non-perforated
• HBR bend restrictor is available for permanent fittings only
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (inch) | Inside Diameter | Maximum Operating Pressure | Outside Diameter | Weight | Size | Division | Media | Design Factor | Maximum Operating Temperature | Hose Inner Tube Material | Compatible Fitting | Application | Hose Reinforcement Material | Minimum Bend Radius | Minimum Operating Temperature | Cover Material | Working Pressure | Inner Diameter | Material | Pkg Qty/UOM | Mating Fitting Series | Pkg Qty | Mating Fitting Series | Series | Hose Pressure Range | Inner Diameter Inch/mm | Working Pressure Range | Material | Inner Diameter | Parker Group | Inch/Metric | Application | Parker Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MSH-5 | Backordered | 3093 in stock | $3.60/foot | FT | FT | 5/16 | 5/16 inch | 6.9 MPa | 0.480 inch | 0.05 lb/ft | -5 | Parflex Division | Petroleum Hydraulic Fluids | 4:1 | 200 °F | Polyamide (PA) | MS Series | Hydraulics | Fiber | 57 mm | -40 °C | Polyurethane | 1000 PSI (70 bar) | 0.313 Inch | Thermoplastic | 600 FT | 108MS, 208MS | 600 | 108MS, 208MS | MSH | Medium | Inch | 1000 to 1999 PSI (69 to 138 bar) | Thermoplastic | 0.313 Inch | Fluid Connector | Inch | Marine Steering | Parflex | |
| MSH-6 | Backordered | 55 in stock | $6.16/foot | FT | FT | 3/8 | 3/8 inch | 6.9 MPa | 0.590 inch | 0.07 lb/ft | -6 | Parflex Division | Petroleum Hydraulic Fluids | 4:1 | 200 °F | Polyamide (PA) | MS Series | Hydraulics | Fiber | 76 mm | -40 °F | Polyurethane | 1000 PSI (70 bar) | 0.375 Inch | Thermoplastic | 600 FT | 108MS, 208MS | 600 | 108MS, 208MS | MSH | Medium | Inch | 1000 to 1999 PSI (69 to 138 bar) | Thermoplastic | 0.375 Inch | Fluid Connector | Inch | Marine Steering | Parflex |
