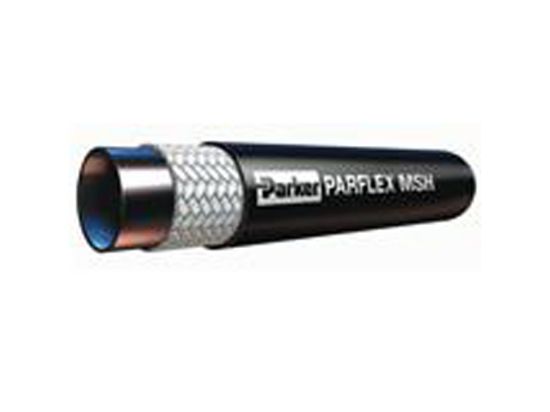

MSH-5 - Marine Hose – Steering

With fast, accurate response and a corrosion resistant thermoplastic construction, the Parker MSH marine hose is ideal for marine hydraulic steering systems. MSH hose is salt water resistant and 1000 psi.

Availability:	Backordered Estimated Lead Time: 4 days
Partner Available:	3093 in stock

SKU MSH-5

$3.60/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Inside Diameter	5/16 inch	Maximum Operating Pressure	6.9 MPa
Outside Diameter	0.480 inch	Weight	0.05 lb/ft
Size	-5	Division	Parflex Division
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Maximum Operating Temperature	200 °F	Hose Inner Tube Material	Polyamide (PA)
Compatible Fitting	MS Series	Application	Hydraulics
Hose Reinforcement Material	Fiber	Minimum Bend Radius	57 mm
Minimum Operating Temperature	-40 °C	Cover Material	Polyurethane
Working Pressure	1000 PSI (70 bar)	Inner Diameter	0.313 Inch
Material	Thermoplastic	Pkg Qty/UOM	600 FT
Mating Fitting Series	108MS, 208MS	Pkg Qty	600
UOM	FT	Mating Fitting Series	108MS, 208MS
Series	MSH	Hose Pressure Range	Medium
Inner Diameter Inch/mm	Inch	Working Pressure Range	1000 to 1999 PSI (69 to 138 bar)
Material	Thermoplastic	Inner Diameter	0.313 Inch
Parker Group	Fluid Connector	Inch/Metric	Inch
Application	Marine Steering	Parker Division	Parflex
