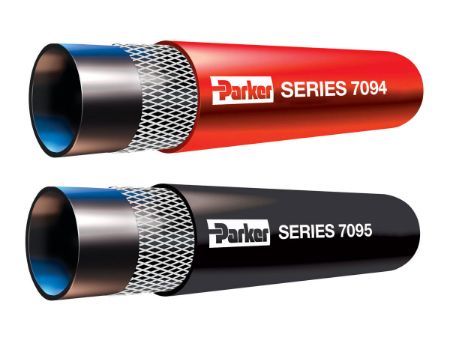

MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's MPT II Nonconductive Multipurpose Oil Resistant Hose provides excellent service across multiple applications. The hose is electrically nonconductive, protecting operators from electrical shock. The red cover is easily identified and is resistant to abrasion, oil and weathering to provide maximum performance. MPT II hose is available in long continuous lengths for efficient inventory management and maximum utility at cramped or hard to reach job sites. The hose is qualified with permanent crimp couplings for a safe and secure connection and is a versatile hose for many common industrial applications.

Markets:

• Agriculture

• Construction

• General Industrial

Features/Benefits:

• Tube: Black nitrile for oil compatibility and versatile service to 212°F.

• Reinforcement: Multiple textile plies for strength and kink resistance.

• Cover: Black or red chloroprene for abrasion, oil and weathering resistance.

• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:

• Air

• Oil

• Mild chemicals

• Water

• Air compressors and pneumatic tools, including those subject to light oil mists for lubrication

• Lubrication systems

• General transfer

Safety/Technical:

• Design Factor 4:1

• Do not use with biodiesel, diesel fuel or gasoline.

• Do not use in dry air applications (typically, air systems that do not expose the tube of the hose to lubricating oil mist from the compressor).

• The user must determine if the hose is suitable for applications subject to electrical hazard. Contact us for additional information.

• Refer to CrimpSource® for current crimp specifications.

Warnings:

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Color	Hose I.D. (inch)	Maximum Working Pressure (psi)	Packaging	Division	Application	Media	Maximum Operating Pressure	Maximum Operating Temperature	Minimum Operating Temperature	Specifications Met	Weight	Outside Diameter	Size	Cover Material	Inside Diameter	Minimum Bend Radius	Hose Inner Tube Material	Hose Reinforcement Material	Nominal Hose Inside Diameter	Pkg Qty/UOM	Pkg Qty	Inner Diameter	Color	Working Pressure	Mating Fitting Series	Package Type	Parker Group	Inch/Metric	Parker Division	Inner Diameter	Inner Diameter Inch/mm	Color	Hose Pressure Range	Mating End Fitting Series	Series	Trade Name	Hose Category
7094-100200	Backordered	728 in stock	$7.38/foot	FT	FT	Red	1	200	Reels	Hose Products Division	Air	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	1.4 MPa	212 °F (Other Media)	-29 °C	n/a	0.49 lb/ft	1.410 inch	-16	Chloroprene Rubber (CR)	25.4 mm	254 mm	ARPM Class A Oil Resistance	Mutiple Plies of Textile	25 mm	300 FT	300	1 Inch	Red	200 PSI (14 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	1 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-100304	1604 in stock	2372 in stock	$7.94/foot	FT	FT	Red	1	300	Reels	Hose Products Division	Air	Air	2.1 MPa	70 °C (Air)	-20 °F	n/a	0.54 lb/ft	1.440 inch	-16	Chloroprene Rubber (CR)	1 inch	8 inch	Nitrile	Mutiple Plies of Textile	25 mm	300 FT	300	1 Inch	Red	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	1 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-125204	241 in stock	699 in stock	$12.29/foot	FT	FT	Red	1-1/4	200	Reels	Hose Products Division	Non-conductive	Air	13.8 bar	70 °C (Air)	-20 °F	n/a	1.22 kg/m	1.780 inch	-20	Chloroprene Rubber (CR)	1-1/4 inch	228.6 mm	ARPM Class A Oil Resistance	Mutiple Plies of Textile	32 mm	250 FT	250	1.25 Inch	Red	200 PSI (14 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	1.25 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-150204	196 in stock	908 in stock	$14.34/foot	FT	FT	Red	1-1/2	200	Reels	Hose Products Division	Multipurpose	Lubricants (Oils)	13.8 bar	158 °F (Air)	-20 °F	n/a	1.34 kg/m	2.030 inch	-24	Chloroprene Rubber (CR)	38.1 mm	254 mm	Nitrile	Mutiple Plies of Textile	40 mm	200 FT	200	1.5 Inch	Red	200 PSI (14 bar)	43	Reel	Fluid Connector	Inch	Hose Products	1.5 Inch	Inch	Red	Low	43	7094	MPT® II	Multipurpose Oil Resistant
7094-25200	Backordered	848 in stock	$1.98/foot	FT	FT	Red	1/4	200	Reels	Hose Products Division	Multipurpose	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	200 psi	158 °F (Air)	-29 °C	n/a	0.1 lb/ft	12.7 mm	-4	Chloroprene Rubber (CR)	6.4 mm	2 inch	ARPM Class A Oil Resistance	Mutiple Plies of Textile	8 mm	800 FT	800	0.25 Inch	Red	200 PSI (14 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.25 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-25300	150 in stock	729 in stock	$2.04/foot	FT	FT	Red	1/4	300	Reels	Hose Products Division	Multipurpose	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	300 psi	212 °F (Other Media)	-20 °F	n/a	0.18 kg/m	0.550 inch	-4	Chloroprene Rubber (CR)	6.4 mm	2.5 inch	Black	Mutiple Plies of Textile	8 mm	800 FT	800	0.25 Inch	Red	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.25 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-31300	20 in stock	4472 in stock	$2.06/foot	FT	FT	Red	5/16	300	Reels	Hose Products Division	Air	Water	2.1 MPa	158 °F (Air)	-29 °C	n/a	0.13 lb/ft	0.590 inch	-5	Chloroprene Rubber (CR)	7.9 mm	83.8 mm	Black	Mutiple Plies of Textile	n/a	750 FT	750	0.313 Inch	Red	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.313 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-38200	Backordered	1928 in stock	$2.68/foot	FT	FT	Red	3/8	200	Reels	Hose Products Division	Air	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	200 psi	70 °C (Air)	-29 °C	n/a	0.15 lb/ft	16.7 mm	-6	Chloroprene Rubber (CR)	3/8 inch	3.8 inch	Black	Mutiple Plies of Textile	10 mm	700 FT	700	0.375 Inch	Red	200 PSI (14 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.375 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-38300	Backordered	1967 in stock	$3.20/foot	FT	FT	Red	3/8	300	Reels	Hose Products Division	Air	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	2.1 MPa	158 °F (Air)	-20 °F	n/a	0.17 lb/ft	0.690 inch	-6	Chloroprene Rubber (CR)	9.5 mm	3.8 inch	Nitrile	Mutiple Plies of Textile	10 mm	650 FT	650	0.375 Inch	Red	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.375 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-50200	Backordered	842 in stock	$3.21/foot	FT	FT	Red	1/2	200	Reels	Hose Products Division	Air	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	13.8 bar	100 °C (Other Media)	-20 °F	n/a	0.21 lb/ft	0.810 inch	-8	Chloroprene Rubber (CR)	1/2 inch	127 mm	Nitrile	Mutiple Plies of Textile	15 mm	550 FT	550	0.5 Inch	Red	200 PSI (14 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.5 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-50250	Backordered	2092 in stock	$3.92/foot	FT	FT	Red	1/2	250	Reels	Hose Products Division	Non-conductive	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	250 psi	212 °F (Other Media)	-29 °C	n/a	0.22 lb/ft	21.4 mm	-8	Chloroprene Rubber (CR)	12.7 mm	5 inch	Nitrile	Mutiple Plies of Textile	15 mm	550 FT	550	0.5 Inch	Red	250 PSI (17 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.5 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-50304	203 in stock	2872 in stock	$3.16/foot	FT	FT	Red	1/2	300	Reels	Hose Products Division	Non-conductive	Air	300 psi	158 °F (Air)	-29 °C	n/a	0.26 lb/ft	22.2 mm	-8	Chloroprene Rubber (CR)	12.7 mm	5 inch	Black	Mutiple Plies of Textile	15 mm	500 FT	500	0.5 Inch	Red	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.5 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-63304	64 in stock	3896 in stock	$4.10/foot	FT	FT	Red	5/8	300	Reels	Hose Products Division	Multipurpose	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	2.1 MPa	70 °C (Air)	-20 °F	n/a	0.57 kg/m	1.060 inch	-10	Chloroprene Rubber (CR)	5/8 inch	154.9 mm	Black	Mutiple Plies of Textile	18 mm	450 FT	450	0.625 Inch	Red	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.625 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-75200	Backordered	480 in stock	$4.92/foot	FT	FT	Red	3/4	200	Reels	Hose Products Division	Multipurpose	Lubricants (Oils)	13.8 bar	158 °F (Air)	-20 °F	n/a	0.54 kg/m	1.110 inch	-12	Chloroprene Rubber (CR)	3/4 inch	7.5 inch	Nitrile	Mutiple Plies of Textile	20 mm	400 FT	400	0.75 Inch	Red	200 PSI (14 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.75 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7094-75304	811 in stock	8816 in stock	$4.04/foot	FT	FT	Red	3/4	300	Reels	Hose Products Division	Air	Lubricants (Oils)	20.7 bar	212 °F (Other Media)	-20 °F	n/a	0.6 kg/m	1.160 inch	-12	Chloroprene Rubber (CR)	3/4 inch	6 inch	Nitrile	Mutiple Plies of Textile	20 mm	400 FT	400	0.75 Inch	Red	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.75 Inch	Inch	Red	Low	HY	7094	MPT® II	Multipurpose Oil Resistant
7095-100200	Backordered	32 in stock	$7.38/foot	FT	FT	Black	1	200	Reels	Hose Products Division	Non-conductive	Water	13.8 bar	212 °F (Other Media)	-20 °F	n/a	0.49 lb/ft	35.7 mm	-16	Chloroprene Rubber (CR)	1 inch	254 mm	Black	Mutiple Plies of Textile	25 mm	300 FT	300	1 Inch	Black	200 PSI (14 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	1 Inch	Inch	Black	Low	HY	7095	MPT® II	Multipurpose Oil Resistant
7095-100304	Backordered	1236 in stock	$10.32/foot	FT	FT	Black	1	300	Reels	Hose Products Division	Non-conductive	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	300 psi	158 °F (Air)	-29 °C	n/a	0.54 lb/ft	36.5 mm	-16	Chloroprene Rubber (CR)	25.4 mm	203.2 mm	Nitrile	Mutiple Plies of Textile	25 mm	300 FT	300	1 Inch	Black	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	1 Inch	Inch	Black	Low	HY	7095	MPT® II	Multipurpose Oil Resistant
7095-25300	197 in stock	800 in stock	$2.04/foot	FT	FT	Black	1/4	300	Reels	Hose Products Division	Non-conductive	Water	300 psi	100 °C (Other Media)	-29 °C	n/a	0.12 lb/ft	14 mm	-4	Chloroprene Rubber (CR)	1/4 inch	2.5 inch	Black	Mutiple Plies of Textile	8 mm	800 FT	800	0.25 Inch	Black	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.25 Inch	Inch	Black	Low	HY	7095	MPT® II	Multipurpose Oil Resistant
7095-31300	Backordered	Backordered	$2.06/foot	FT	FT	Black	5/16	300	Reels	Hose Products Division	Air	Air	20.7 bar	70 °C (Air)	-20 °F	n/a	0.13 lb/ft	15.1 mm	-5	Chloroprene Rubber (CR)	5/16 inch	3.3 inch	Black	Mutiple Plies of Textile	n/a	750 FT	750	0.313 Inch	Black	300 PSI (20 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.313 Inch	Inch	Black	Low	HY	7095	MPT® II	Multipurpose Oil Resistant
7095-38200	26 in stock	2561 in stock	$2.06/foot	FT	FT	Black	3/8	200	Reels	Hose Products Division	Multipurpose	Air	1.4 MPa	158 °F (Air)	-29 °C	n/a	0.22 kg/m	0.660 inch	-6	Chloroprene Rubber (CR)	9.5 mm	96.5 mm	Nitrile	Mutiple Plies of Textile	10 mm	700 FT	700	0.375 Inch	Black	200 PSI (14 bar)	HY	Reel	Fluid Connector	Inch	Hose Products	0.375 Inch	Inch	Black	Low	HY	7095	MPT® II	Multipurpose Oil Resistant
