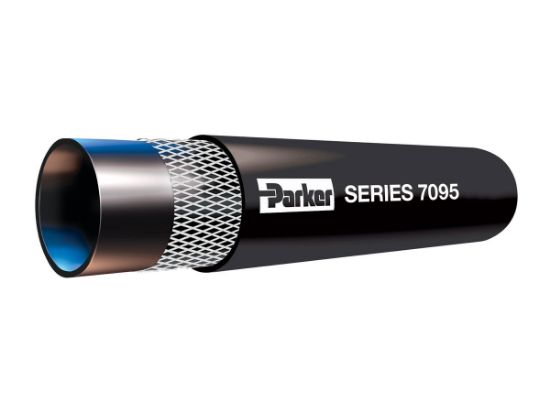

7095-100200 - MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	32 in stock

SKU 7095-100200

$7.38/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	200
Packaging	Reels	Division	Hose Products Division
Application	Non-conductive	Media	Water
Maximum Operating Pressure	13.8 bar	Maximum Operating Temperature	212 °F (Other Media)
Minimum Operating Temperature	-20 °F	Specifications Met	n/a
Weight	0.49 lb/ft	Outside Diameter	35.7 mm
Size	-16	Cover Material	Chloroprene Rubber (CR)
Inside Diameter	1 inch	Minimum Bend Radius	254 mm
Hose Inner Tube Material	Black	Hose Reinforcement Material	Mutiple Plies of Textile
Nominal Hose Inside Diameter	25 mm	Pkg Qty/UOM	300 FT
Pkg Qty	300	UOM	FT
Inner Diameter	1 Inch	Color	Black
Working Pressure	200 PSI (14 bar)	Mating Fitting Series	HY
Package Type	Reel	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	1 Inch	Inner Diameter Inch/mm	Inch
Color	Black	Hose Pressure Range	Low
Mating End Fitting Series	HY	Series	7095
Trade Name	MPT® II	Hose Category	Multipurpose Oil Resistant

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
