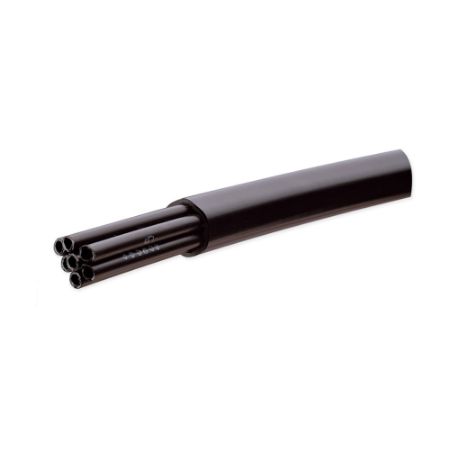

Multitube® Plastic Tubing Bundles

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parflex Division Multitube® Bundles are available in a variety of bundle configurations. Bundled tubing is an ideal alternative for applications where multiple lengths of tubing are currently being installed independently. Bundled tubing typically will save space within cabled trays, reduce the overall installation cost and offer protection to the individual tubes while being routed throughout a plant. The standard jacketing material is black, 105°C-rated, flame-resistant PVC that offers tough protection against corrosive environments, water, oils, acids and alkaline chemicals, allowing the bundles to operate successfully under many different conditions.

Markets:
• Industrial Plant
• Robotics
• Laboratory

Features/Benefits:
• Available in a variety of plastic tubing materials and bundle configurations
• Saves space within cable trays
• Reduces overall installation costs
• Offers protection to individual tubes while being routed throughout the plant

Applications:
• Instrumentation

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Tube Type	Number of Tubes	Tube O.D. (inch)	Tubing Material	Tube Wall Thickness (inch)	Cover Color	Maximum Operating Temperature	Division	Nominal Outside Diameter	Tube Material	Tube Outside Diameter	Cover Material	Number of Tubes	Minimum Operating Temperature	Minimum Bend Radius
10PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	10	1/4	Polyethylene	0.04	Black	66 °C	Parflex Division	1.14 inch	Polyethylene (PE)	1/4 inch	FR-PVC	10	-62 °C	3 inch
10PJ-E0662	Backordered	2628 in stock	POR	FT	Jacketed Tubing	10	3/8	Polyethylene	0.062	Black	66 °C	Parflex Division	1.72 inch	Polyethylene (PE)	3/8 inch	FR-PVC	10	-62 °C	5 inch
12PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	12	1/4	Polyethylene	0.04	Black	150 °F	Parflex Division	1.14 inch	Polyethylene (PE)	1/4 inch	FR-PVC	12	-80 °F	3.5 inch
19PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	19	1/4	Polyethylene	0.04	Black	66 °C	Parflex Division	1.4 inch	Polyethylene (PE)	1/4 inch	FR-PVC	19	-80 °F	5 inch
2PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	2	1/4	Polyethylene	0.04	Black	66 °C	Parflex Division	0.59 inch	Polyethylene (PE)	1/4 inch	FR-PVC	2	-80 °F	1.5 inch
2PJ-E0662	Backordered	Backordered	POR	FT	Jacketed Tubing	2	3/8	Polyethylene	0.062	Black	66 °C	Parflex Division	0.89 inch	Polyethylene (PE)	3/8 inch	FR-PVC	2	-80 °F	2 inch
37PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	37	1/4	Polyethylene	0.04	Black	150 °F	Parflex Division	1.96 inch	Polyethylene (PE)	1/4 inch	FR-PVC	37	-62 °C	9 inch
3PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	3	1/4	Polyethylene	0.04	Black	66 °C	Parflex Division	0.6 inch	Polyethylene (PE)	1/4 inch	FR-PVC	3	-80 °F	1.5 inch
4PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	4	1/4	Polyethylene	0.04	Black	66 °C	Parflex Division	0.74 inch	Polyethylene (PE)	1/4 inch	FR-PVC	4	-80 °F	2 inch
5PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	5	1/4	Polyethylene	0.04	Black	66 °C	Parflex Division	0.88 inch	Polyethylene (PE)	1/4 inch	FR-PVC	5	-80 °F	2 inch
7PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	7	1/4	Polyethylene	0.04	Black	66 °C	Parflex Division	0.89 inch	Polyethylene (PE)	1/4 inch	FR-PVC	7	-80 °F	2.5 inch
8PJ-E0440	Backordered	Backordered	POR	FT	Jacketed Tubing	8	1/4	Polyethylene	0.04	Black	66 °C	Parflex Division	0.97 inch	Polyethylene (PE)	1/4 inch	FR-PVC	8	-80 °F	2.5 inch
