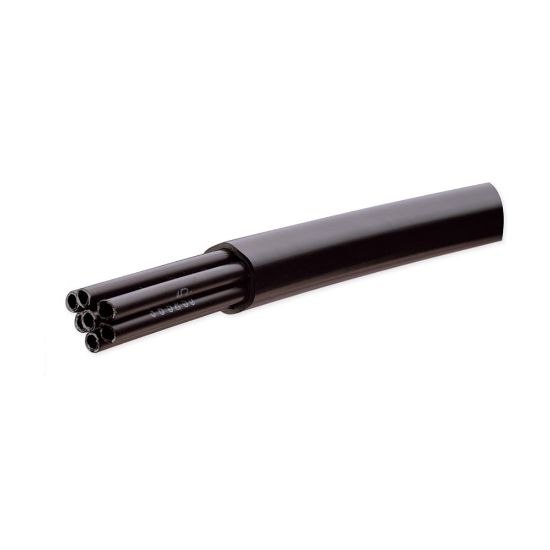

10PJ-E0662 - Multitube® Plastic Tubing Bundles

Multitube® Plastic Tubing Bundles save space, reduce installation costs and offer protection in various industrial plant, robotics and laboratory applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	2628 in stock

SKU 10PJ-E0662

Products specifications

Attribute name	Attribute value
UOM	FT	Tube Type	Jacketed Tubing
Number of Tubes	10	Tube O.D. (inch)	3/8
Tubing Material	Polyethylene	Tube Wall Thickness (inch)	0.062
Nominal Outside Diameter	1.72 inch	Maximum Operating Temperature	66 °C
Tube Material	Polyethylene (PE)	Cover Material	FR-PVC
Minimum Bend Radius	5 inch	Number of Tubes	10
Tube Outside Diameter	3/8 inch	Minimum Operating Temperature	-62 °C
Cover Color	Black	Division	Parflex Division

Product resources

Literature and Reference Materials

Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660 (PDF)
