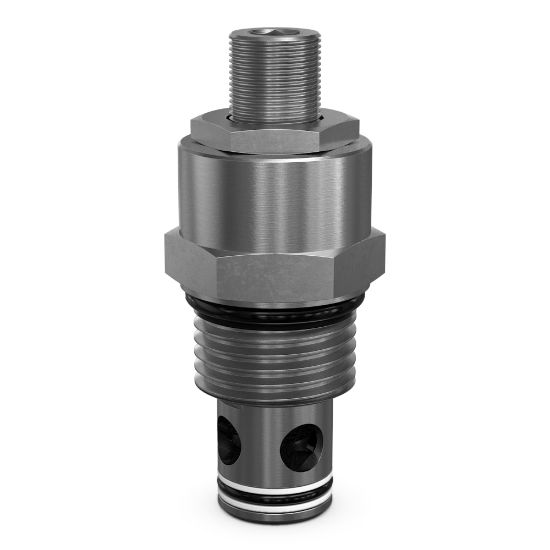

FV102SV - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FV102SV

$67.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Flow Rate	6 GAL/MIN, 23 L/MIN	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Needle Type	Fine
Operation Type	Manually operated	Connection Type	N/A
Division	Hydraulic Systems Division	Division	Hydraulic Cartridge Systems Division
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Maximum Flow Rate	6 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Needle w/Reverse Check	Operating Temperature	-26 to +204 °C
Actuation Type	Manual	Weight	0.23 kg
Maximum Operating Pressure	3000 psi	Body Material	N/A
Installation Torque	16 lb-ft	Minimum Operating Temperature	-26 °C
Needle Type	Fine	Adjustment Mechanism	Screw
Cavity Size	C10-2	Flow Rate	6 Gal/min
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	210 bar
Valve Material	All parts steel. All operating parts hardened steel	Connection Size	N/A
Function	2-Way
