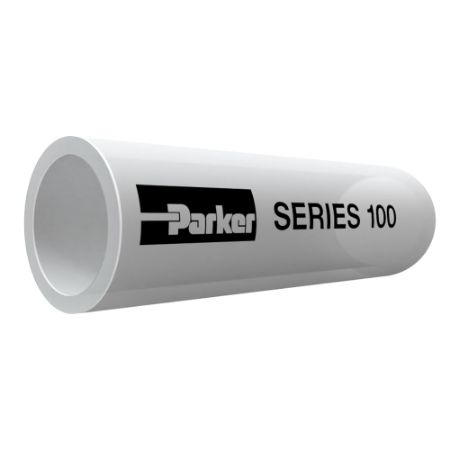

NEXCLEAR® PVC Clear General Service Tubing, Series 100
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 100 Nexclear PVC Clear General Service Tubing provides low pressure standard duty service across multiple applications. The clear, smooth tubing does not impart taste or odor to material being conveyed, allows unimpeded flow and easy and quick observation of the transfer process. The tubing is resistant to abrasion and weathering for maximum performance.
Markets:
• Food and Beverage
• General Industrial
Features/Benefits:
• Tube: Clear PVC, 75A durometer for durability to 150°F.
Applications:
-media
• Air
• Beverages
• Dry abrasive materials
• Food
• Potable water
-usage
• Conduit
• Drain lines
• Food and beverage dispensing/processing equipment
• Harness
• Laboratories
Industry Standards:
• CFIA Compliant
• FDA
• NSF 51 Listed certified to 180°F (82°C)
• USP Class VI Rated
Safety/Technical:
• Light suction/vacuum
• Available in non-phthalate formulations. Contact your local distributor for information.
Warnings:
• Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure.
| Action | SKU | Availability | Partner Available | Price | UOM | Tube I.D. (inch) | Tube O.D. (inch) | Maximum Working Pressure (psi) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Color | Vacuum Pressure Rating | Hose Inner Tube Material | Tube Outside Diameter | Durometer | Package Type | Length per Package | Tube Inside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100-01020502 | Backordered | Backordered | $0.25/foot | FT | 1/16 | 1/8 | 50 | Hose Products Division | PVC General Purpose Tubing | Food & Beverage (Wine) | 3.4 bar | 150 °F | 25 °F | USP Class VI | 0.01 kg | Clear | Light | PVC | 3.2 mm | 75 Shore A | Coil | 500 ft | 1.6 mm | |
| 100-02040102 | Backordered | 153 in stock | $0.34/foot | FT | 1/8 | 1/4 | 65 | Hose Products Division | PVC General Purpose Tubing | Water (Pure Water) | 65 psi | 150 °F | -5 °C | FDA | 0.01 kg | Clear | Light | PVC | 1/4 inch | 75 Shore A | Coil | 100 ft | 1/8 inch | |
| 100-03050102 | Backordered | 52 in stock | $0.32/foot | FT | 3/16 | 5/16 | 55 | Hose Products Division | PVC General Purpose Tubing | Water (Pure Water) | 3.8 bar | 150 °F | 25 °F | EU Res AP (89) | 0.01 kg | Clear | Light | Clear | 7.9 mm | 75 Shore A | Coil | 100 ft | 4.8 mm | |
| 100-04060102 | 66 in stock | Backordered | $0.36/foot | FT | 1/4 | 3/8 | 55 | Hose Products Division | PVC General Purpose Tubing | Water (Pure Water) | 3.8 bar | 150 °F | 25 °F | EU Res AP (89) | 0.02 kg | Clear | Light | Clear | 9.5 mm | 75 Shore A | Coil | 100 ft | 6.4 mm | |
| 100-04080102 | Backordered | 300 in stock | $0.84/foot | FT | 1/4 | 1/2 | 60 | Hose Products Division | PVC General Purpose Tubing | Water (Potable Water) | 60 psi | 65 °C | -5 °C | USP Class VI | 0.04 kg | Clear | Light | Clear | 1/2 inch | 75 Shore A | Coil | 100 ft | 1/4 inch | |
| 100-05070102 | Backordered | Backordered | $0.36/foot | FT | 5/16 | 7/16 | 50 | Hose Products Division | PVC General Purpose Tubing | Water (Pure Water) | 50 psi | 150 °F | 25 °F | US Government A-A-52047 Type VI | 0.04 lb | Clear | Light | Clear | 7/16 inch | 75 Shore A | Coil | 100 ft | 7.9 mm | |
| 100-05080102 | Backordered | Backordered | $0.68/foot | FT | 5/16 | 1/2 | 55 | Hose Products Division | PVC General Purpose Tubing | Water (Potable Water) | 3.8 bar | 65 °C | -5 °C | NSF 51 (certified to 180°F / 82°C) | 0.03 kg | Clear | Light | PVC | 1/2 inch | 75 Shore A | Coil | 100 ft | 7.9 mm | |
| 100-06080102 | Backordered | 280 in stock | $0.61/foot | FT | 3/8 | 1/2 | 45 | Hose Products Division | PVC General Purpose Tubing | Water (Potable Water) | 45 psi | 150 °F | 25 °F | NSF 51 (certified to 180°F / 82°C) | 0.04 lb | Clear | Light | PVC | 1/2 inch | 75 Shore A | Coil | 100 ft | 9.5 mm | |
| 100-06100102 | Backordered | 240 in stock | $1.58/foot | FT | 3/8 | 5/8 | 55 | Hose Products Division | PVC General Purpose Tubing | Air | 55 psi | 150 °F | -5 °C | USP Class VI | 0.05 kg | Clear | Light | Clear | 5/8 inch | 75 Shore A | Coil | 100 ft | 3/8 inch | |
| 100-08100102 | 1000 in stock | 4853 in stock | $0.61/foot | FT | 1/2 | 5/8 | 30 | Hose Products Division | PVC Tubing General Purpose | Air | 2.1 bar | 65 °C | 25 °F | EU Res AP (89) | 0.07 lb | Clear | Light | Clear | 15.9 mm | 75 Shore A | Coil | 100 ft | 1/2 inch | |
| 100-08120102 | Backordered | 209 in stock | $1.72/foot | FT | 1/2 | 3/4 | 45 | Hose Products Division | PVC Tubing General Purpose | Water (Pure Water) | 3.1 bar | 65 °C | 25 °F | USP Class VI | 0.13 lb | Clear | Light | PVC | 3/4 inch | 75 Shore A | Coil | 100 ft | 12.7 mm | |
| 100-10120102 | Backordered | Backordered | $0.76/foot | FT | 5/8 | 3/4 | 25 | Hose Products Division | PVC Tubing General Purpose | Food & Beverage | 25 psi | 150 °F | 25 °F | USP Class VI | 0.03 kg | Clear | Light | Clear | 3/4 inch | 75 Shore A | Coil | 100 ft | 5/8 inch | |
| 100-10140102 | Backordered | Backordered | $1.57/foot | FT | 5/8 | 7/8 | 40 | Hose Products Division | PVC Tubing General Purpose | Food & Beverage (Wine) | 40 psi | 65 °C | -5 °C | US Government A-A-52047 Type VI | 0.07 kg | Clear | Light | PVC | 22.2 mm | 75 Shore A | Coil | 100 ft | 5/8 inch | |
| 100-16200100 | Backordered | 199 in stock | $3.11/foot | FT | 1-1/4 | 25 | Hose Products Division | PVC Tubing General Purpose | Food & Beverage | 1.7 bar | 65 °C | -5 °C | NSF 51 (certified to 180°F / 82°C) | 0.24 lb | Clear | Light | Clear | 1-1/4 inch | 75 Shore A | Coil | 100 ft | 1 inch | ||
| 100-24320100 | Backordered | 24 in stock | $9.43/foot | FT | 2 | 35 | Hose Products Division | PVC Tubing General Purpose | Air | 35 psi | 150 °F | -5 °C | NSF 51 (certified to 180°F / 82°C) | 0.33 kg | Clear | Light | Clear | 2 inch | 75 Shore A | Coil | 100 ft | 1-1/2 inch |
