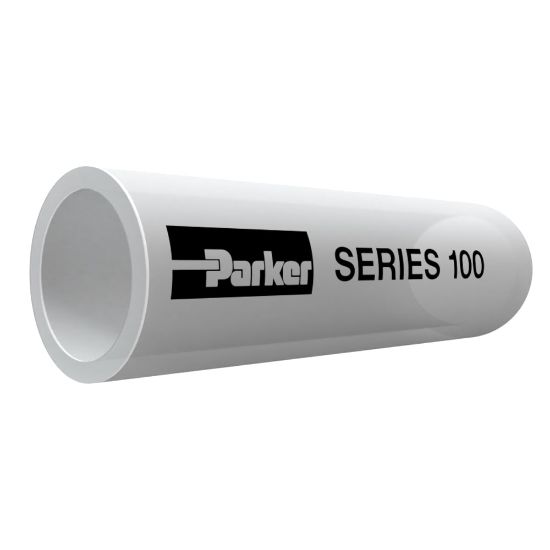

100-01020502 - NEXCLEAR® PVC Clear General Service Tubing, Series 100

Nexclear PVC Clear General Service Tubing is designed for transfer of abrasives, air, beverages, food particulates, sanitary products and potable water in applications to 150°F and 65 psi, Series 100

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 84 days
Partner Available:	Backordered

SKU 100-01020502

$0.25/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Tube I.D. (inch)	1/16
Tube O.D. (inch)	1/8	Maximum Working Pressure (psi)	50
Division	Hose Products Division	Application	PVC General Purpose Tubing
Media	Food & Beverage (Wine)	Maximum Operating Pressure	3.4 bar
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	25 °F
Specifications Met	USP Class VI	Weight	0.01 kg
Color	Clear	Vacuum Pressure Rating	Light
Hose Inner Tube Material	PVC	Tube Outside Diameter	3.2 mm
Durometer	75 Shore A	Package Type	Coil
Length per Package	500 ft	Tube Inside Diameter	1.6 mm
