OBSOLETE: 100R17 Hose - R6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

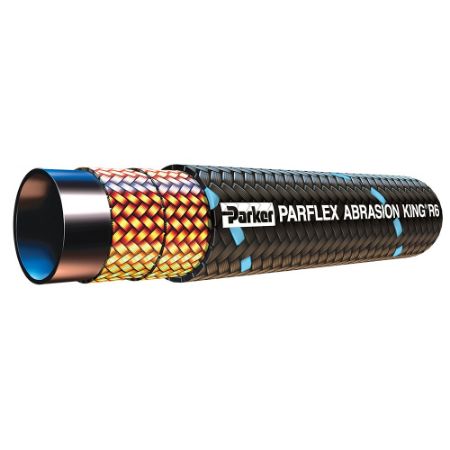

R6 Abrasion King® hose is specially designed to provide superior abrasion resistance. The R6 hose features one or two braids of high tensile steel wire braid reinforcements and a durable, nylon fabric cover with a blue marker strip for quick hose identification. It is designed to handle medium pressure hydraulic applications in tough environments like forestry, agricultural, and construction equipment. R6 exceeds SAE 100R17 requirements.

Markets:
•Forestryl
• Agriculture
• Industrial
• Construction
• Mobile Equipment

Features/Benefits:
• Excellent abrasion resistance
• Blue marker strip for easy hose identification

Applications:
• Medium pressure hydraulic applications

Certifications/Compliance:
• Exceeds SAE 100R17 requirements

Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Length	Division	Maximum Operating Temperature	Size	Hose Inner Tube Material	Compatible Fitting	Inside Diameter	Maximum Operating Pressure	Outside Diameter	Weight	Hose Reinforcement Material	Minimum Bend Radius	Minimum Operating Temperature	Application	Specifications Met	Media	Design Factor	Cover Material
R604-500	Backordered	Backordered	POR	FT	1/4	500	Parflex Division	250	-4	Copolyester	HY Series	1/4	3000	0.530	0.11	1 or 2 Braids of High Tensile Steel Wire	2	-70	Agriculture Equipment	SAE 100R17	Lubricants	4:1	Nylon Fabric Abrasion Resistant
R606-500	Backordered	Backordered	POR	FT	3/8	500	Parflex Division	250	-6	Copolyester	HY Series	3/8	3000	0.690	0.20	1 or 2 Braids of High Tensile Steel Wire	2-1/2	-70	Agriculture Equipment	SAE 100R17	Lubricants	4:1	Nylon Fabric Abrasion Resistant
R608-500	Backordered	Backordered	POR	FT	1/2	500	Parflex Division	250	-8	Copolyester	HY Series	1/2	3000	0.840	0.27	1 or 2 Braids of High Tensile Steel Wire	3-1/2	-70	Agriculture Equipment	SAE 100R17	Lubricants	4:1	Nylon Fabric Abrasion Resistant
R612-250	Backordered	Backordered	POR	FT	3/4	250	Parflex Division	100 °C	-12	Copolyester	HY Series	3/4 inch	207 bar	31.5 mm	0.71 lb/ft	1 or 2 Braids of High Tensile Steel Wire	121 mm	-46 °C	Industrial Machinery	SAE 100R17	Lubricants	4:1	Nylon Fabric Abrasion Resistant
