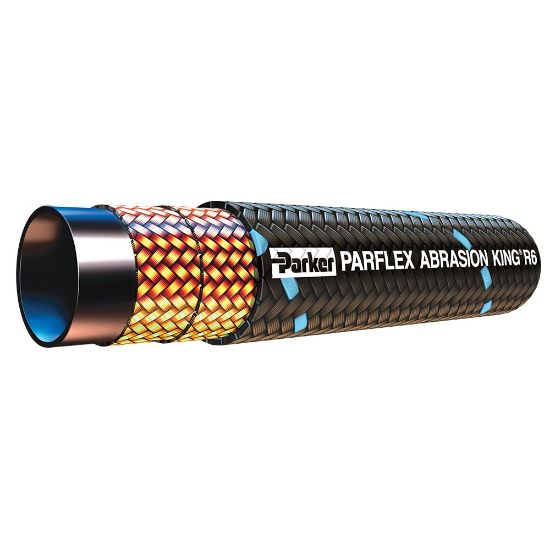

R612-250 - OBSOLETE: 100R17 Hose - R6

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU R612-250

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Length	250	Hose Reinforcement Material	1 or 2 Braids of High Tensile Steel Wire
Specifications Met	SAE 100R17	Application	Industrial Machinery
Outside Diameter	31.5 mm	Media	Lubricants
Minimum Operating Temperature	-46 °C	Cover Material	Nylon Fabric Abrasion Resistant
Minimum Bend Radius	121 mm	Division	Parflex Division
Size	-12	Maximum Operating Temperature	100 °C
Compatible Fitting	HY Series	Design Factor	4:1
Hose Inner Tube Material	Copolyester	Weight	0.71 lb/ft
Maximum Operating Pressure	207 bar	Inside Diameter	3/4 inch
