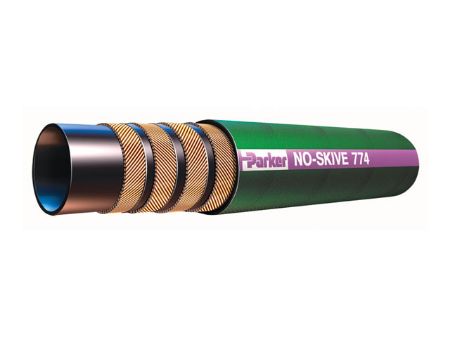

Phosphate-Ester Hose 2500-4000 PSI - 774 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 774 hose is a phosphate-ester compatible hose that has a pressure range of 2500-4000 PSI and is specifically designed to resist aggressive airline hydraulic fluids. The 774 hose is reinforced with four spiral steel wires and has an EPDM rubber cover making it extremely durable. Sizes range from ¾” to 2” in diameter to fit the requirements of various markets.
Markets:
• Ground Support Equipment
• Industrial
Features/Benefits:
• 2500-4000 PSI in different sizes
• Dimensionally conforms to 100R12 and EN 856 Type R12 specifications
• Leak-free assemblies when used with EPDM O-ring face seals and proper fittings
Applications:
• Phosphate-ester base hydraulic fluids
Compatible Fittings:
• 71 series fittings
Read More...Markets:
• Ground Support Equipment
• Industrial
Features/Benefits:
• 2500-4000 PSI in different sizes
• Dimensionally conforms to 100R12 and EN 856 Type R12 specifications
• Leak-free assemblies when used with EPDM O-ring face seals and proper fittings
Applications:
• Phosphate-ester base hydraulic fluids
Compatible Fittings:
• 71 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Outside Diameter | Cover Material | Inside Diameter | Compatible Fitting | Minimum Bend Radius | Hose Inner Tube Material | Hose Reinforcement Material | Cover Color | Nominal Hose Inside Diameter | Material | Pkg Qty/UOM | Pkg Qty | Inner Diameter | Working Pressure | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Application | Hose Category | Hose Pressure Range | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 774-12 | 86 in stock | 189 in stock | $43.51/foot | FT | FT | -12 | Hose Products Division | Phosphate Ester | Petroleum Hydraulic Fluids | 4000 psi | 176 °F | -40 °F | n/a | 0.94 lb/ft | 31 mm | Ethylene Propylene Diene Monomer (EPDM) | 19 mm | 71 Series | 240 mm | Ethylene Propylene Diene Monomer (EPDM) | 4 Spirals of Steel Wire | Green | 19 mm | Rubber | 140 FT | 140 | 0.75 Inch | 4000 PSI (280 bar) | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Phosphate Ester | Hydraulic – Phosphate-Ester | High | 774 | |
| 774-16 | 90 in stock | 259 in stock | $52.47/foot | FT | FT | -16 | Hose Products Division | Phosphate Ester | Petroleum Hydraulic Fluids | 28 MPa | 80 °C | -40 °C | n/a | 1.34 lb/ft | 38 mm | Ethylene Propylene Diene Monomer (EPDM) | 1 inch | 71 Series | 12 inch | Ethylene Propylene Diene Monomer (EPDM) | 4 Spirals of Steel Wire | Green | 25 mm | Rubber | 140 FT | 140 | 1 Inch | 4000 PSI (280 bar) | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | 4000 to 4999 PSI (276 to 345 bar) | Hydraulic Phosphate Ester | Hydraulic – Phosphate-Ester | High | 774 | |
| 774-20 | Backordered | 276 in stock | $131.32/foot | FT | FT | -20 | Hose Products Division | Phosphate Ester | Petroleum Hydraulic Fluids | 21 MPa | 80 °C | -40 °F | n/a | 2.59 kg/m | 1.840 inch | Ethylene Propylene Diene Monomer (EPDM) | 1-1/4 inch | 71 Series | 420 mm | Ethylene Propylene Diene Monomer (EPDM) | 4 Spirals of Steel Wire | Green | 31 mm | Rubber | 140 FT | 140 | 1.25 Inch | 3000 PSI (210 bar) | Fluid Connector | Inch | Hose Products | 1.25 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic Phosphate Ester | Hydraulic – Phosphate-Ester | High | 774 | |
| 774-24 | Backordered | 6 in stock | $153.38/foot | FT | FT | -24 | Hose Products Division | Phosphate Ester | Petroleum Hydraulic Fluids | 2500 psi | 80 °C | -40 °C | n/a | 2.99 kg/m | 53 mm | Ethylene Propylene Diene Monomer (EPDM) | 38 mm | 71 Series | 500 mm | Ethylene Propylene Diene Monomer (EPDM) | 4 Spirals of Steel Wire | Green | 38 mm | Rubber | 100 FT | 100 | 1.5 Inch | 2500 PSI (170 bar) | Fluid Connector | Inch | Hose Products | 1.5 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic Phosphate Ester | Hydraulic – Phosphate-Ester | High | 774 | |
| 774-32 | Backordered | 6 in stock | $566.85/foot | FT | FT | -32 | Hose Products Division | Phosphate Ester | Petroleum Hydraulic Fluids | 17.5 MPa | 80 °C | -40 °C | n/a | 4.09 kg/m | 66 mm | Ethylene Propylene Diene Monomer (EPDM) | 51 mm | 71 Series | 530 mm | Ethylene Propylene Diene Monomer (EPDM) | 4 Spirals of Steel Wire | Green | 51 mm | Rubber | 100 FT | 100 | 2 Inch | 2500 PSI (170 bar) | Fluid Connector | Inch | Hose Products | 2 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic Phosphate Ester | Hydraulic – Phosphate-Ester | High | 774 |
