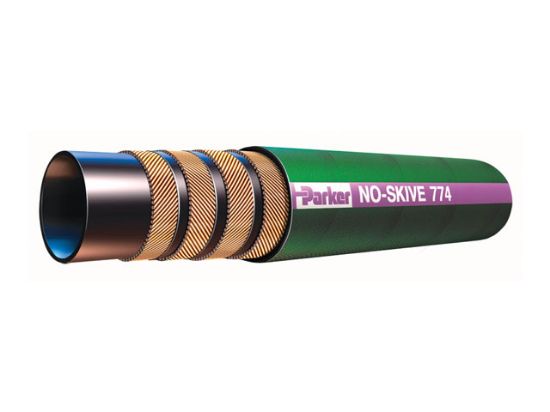

774-16 - Phosphate-Ester Hose 2500-4000 PSI - 774 Hose

Name: 774-16 - Phosphate-Ester Hose 2500-4000 PSI - 774 Hose
SKU: 774-16
Price: 52.47 USD
Availability: InStock

Parker's 774 hose is a phosphate-ester compatible hose that has a pressure range of 2500-4000 PSI and is specifically designed to resist aggressive airline hydraulic fluids.

Availability:

90 in stock

Wichita, KS	78
TOPEKA, KS	12

Partner Available:

259 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 774-16

$52.47/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Division	Hose Products Division	Application	Phosphate Ester
Media	Petroleum Hydraulic Fluids	Maximum Operating Pressure	28 MPa
Maximum Operating Temperature	80 °C	Minimum Operating Temperature	-40 °C
Specifications Met	n/a	Weight	1.34 lb/ft
Outside Diameter	38 mm	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Inside Diameter	1 inch	Compatible Fitting	71 Series
Minimum Bend Radius	12 inch	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Hose Reinforcement Material	4 Spirals of Steel Wire	Cover Color	Green
Nominal Hose Inside Diameter	25 mm	Material	Rubber
Pkg Qty/UOM	140 FT	Pkg Qty	140
UOM	FT	Inner Diameter	1 Inch
Working Pressure	4000 PSI (280 bar)	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	1 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Working Pressure Range	4000 to 4999 PSI (276 to 345 bar)
Application	Hydraulic Phosphate Ester	Hose Category	Hydraulic – Phosphate-Ester
Hose Pressure Range	High	Series	774
