Phosphate-Ester Hose 375-1000 PSI - 424 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

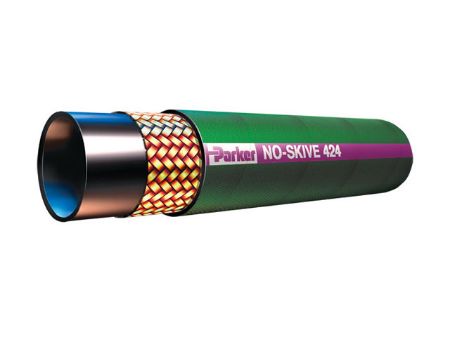

Parker's 424 hose is a phosphate-ester compatible hose that has a pressure range of 375-1000 PSI and is specifically designed to resist aggressive airline hydraulic fluids. The 424 hose is reinforced with one steel braid and has an EPDM rubber cover making it extremely durable. Sizes range from 1” to 2” in diameter to fit the requirements of various markets.

Markets:
• Ground Support Equipment
• Industrial

Features/Benefits:
• 375-1000 PSI in different sizes
• Dimensionally conforms with 100R1 Type AT specification
• Leak-free assemblies when used with EPDM O-ring face seals and proper fittings

Applications:
• Phosphate-ester base hydraulic fluids

Compatible Fittings:
• 43 series fittings

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Hose I.D. (size)	Minimum Operating Temperature	Minimum Bend Radius	Hose Reinforcement Material	Specifications Met	Application	Nominal Hose Inside Diameter	Inside Diameter	Maximum Operating Pressure	Outside Diameter	Weight	Cover Color	Division	Compatible Fitting	Maximum Operating Temperature	Hose Inner Tube Material	Media	Cover Material	Inner Diameter	Material	Working Pressure	Pkg Qty/UOM	Pkg Qty	Parker Group	Inch/Metric	Parker Division	Inner Diameter	Inner Diameter Inch/mm	Material	Working Pressure Range	Application	Hose Pressure Range	Hose Category	Series
424-16	94 in stock	54 in stock	$42.84/foot	FT	FT	-16	-40 °F	300 mm	1 Braid of Steel Wire	n/a	Phosphate Ester	25 mm	1 inch	6.9 MPa	36 mm	0.94 kg/m	Green	Hose Products Division	43 Series	176 °F	Ethylene Propylene Diene Monomer (EPDM)	Petroleum Hydraulic Fluids	Ethylene Propylene Diene Monomer (EPDM)	1 Inch	Rubber	1000 PSI (70 bar)	135 FT	135	Fluid Connector	Inch	Hose Products	1 Inch	Inch	Rubber	1000 to 1999 PSI (69 to 138 bar)	Hydraulic Phosphate Ester	Medium	Hydraulic – Phosphate-Ester	424
424-20	Backordered	193 in stock	$65.65/foot	FT	FT	-20	-40 °F	16-1/2 inch	1 Braid of Steel Wire	n/a	Phosphate Ester	31 mm	31.5 mm	4.3 MPa	44 mm	0.8 lb/ft	Green	Hose Products Division	43 Series	176 °F	Ethylene Propylene Diene Monomer (EPDM)	Petroleum Hydraulic Fluids	Ethylene Propylene Diene Monomer (EPDM)	1.25 Inch	Rubber	625 PSI (40 bar)	50 FT	50	Fluid Connector	Inch	Hose Products	1.25 Inch	Inch	Rubber	500 to 999 PSI (34 to 69 bar	Hydraulic Phosphate Ester	Medium	Hydraulic – Phosphate-Ester	424
424-24	12 in stock	30 in stock	$67.26/foot	FT	FT	-24	40 °C	20 inch	1 Braid of Steel Wire	n/a	Phosphate Ester	38 mm	1-1/2 inch	500 psi	2 inch	1.49 kg/m	Green	Hose Products Division	43 Series	176 °F	Ethylene Propylene Diene Monomer (EPDM)	Petroleum Hydraulic Fluids	Ethylene Propylene Diene Monomer (EPDM)	1.5 Inch	Rubber	500 PSI (30 bar)	50 FT	50	Fluid Connector	Inch	Hose Products	1.5 Inch	Inch	Rubber	500 to 999 PSI (34 to 69 bar	Hydraulic Phosphate Ester	Medium	Hydraulic – Phosphate-Ester	424
424-32	11 in stock	79 in stock	$77.38/foot	FT		-32	40 °C	630 mm	1 Braid of Steel Wire	n/a	Phosphate Ester	51 mm	51 mm	2.6 MPa	2.500 inch	2.23 kg/m	Green	Hose Products Division	43 Series	80 °C	Ethylene Propylene Diene Monomer (EPDM)	Petroleum Hydraulic Fluids	Ethylene Propylene Diene Monomer (EPDM)
