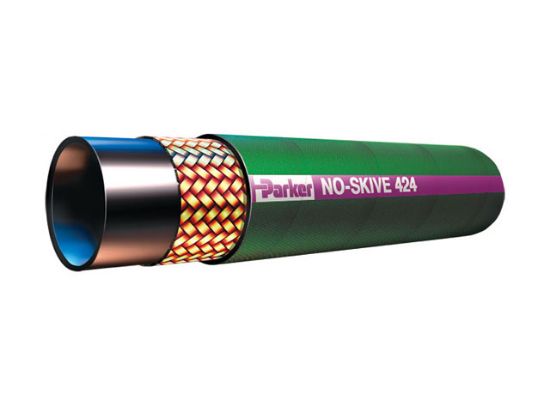

424-20 - Phosphate-Ester Hose 375-1000 PSI - 424 Hose

Parker's 424 hose is a phosphate-ester compatible hose that has a pressure range of 375-1000 PSI and is specifically designed to resist aggressive airline hydraulic fluids.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	193 in stock

SKU 424-20

$65.65/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Cover Color	Green	Division	Hose Products Division
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Compatible Fitting	43 Series
Maximum Operating Temperature	176 °F	Media	Petroleum Hydraulic Fluids
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	16-1/2 inch	Specifications Met	n/a
Application	Phosphate Ester	Hose Reinforcement Material	1 Braid of Steel Wire
Outside Diameter	44 mm	Nominal Hose Inside Diameter	31 mm
Maximum Operating Pressure	4.3 MPa	Weight	0.8 lb/ft
Inside Diameter	31.5 mm	Pkg Qty/UOM	50 FT
Pkg Qty	50	UOM	FT
Material	Rubber	Inner Diameter	1.25 Inch
Working Pressure	625 PSI (40 bar)	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter Inch/mm	Inch	Inner Diameter	1.25 Inch
Material	Rubber	Working Pressure Range	500 to 999 PSI (34 to 69 bar
Application	Hydraulic Phosphate Ester	Hose Pressure Range	Medium
Hose Category	Hydraulic – Phosphate-Ester	Series	424
