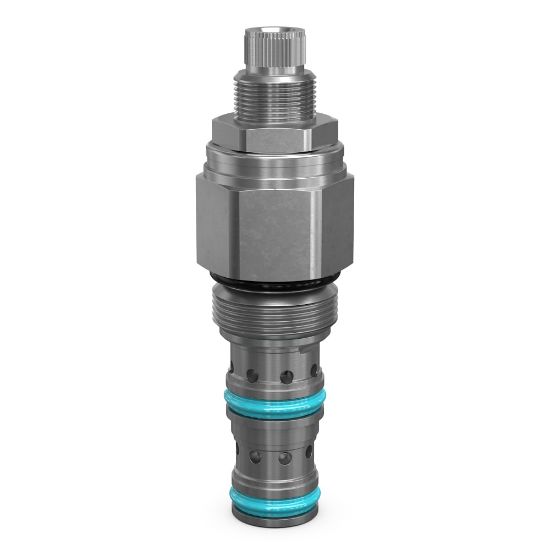

PRH081S30 - Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU PRH081S30

$83.52/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Screw
Flow Rate	8 GAL/MIN, 30 L/MIN	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Seal Material	D-Ring (Standard)
Pressure Control Range	200-3000 PSI, 13.8-210 BAR	Maximum Tank Pressure	5000 psi
Function	Pilot Operated	Cracking Pressure	N/A psi
Cavity Size	C08-3	Minimum Operating Temperature	-37 °C
Adjustment Mechanism	Screw	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	30 L/min	Leak Rate	N/A cc/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Seal Material	D-Ring (Standard)
Valve Material	All parts steel. All operating parts hardened steel	Maximum Pressure Setting	210 bar
Maximum Inlet Pressure Rating	380 bar	Maximum Operating Temperature	+93 °C
Installation Torque	32-36 lb-ft	Weight	0.25 lb
Maximum Operating Pressure	5000 psi	Body Material	N/A
Operation Type	Automatic	Standard Setting Pressure	1500 psi
Maximum Drain Flow Rate	0.15 Gal/min	Division	Hydraulic Systems Division
Mounting Type	Screw in cartridge valve	Pressure Control Range	13.8-210 bar
Port Thread Size	N/A	Configuration	Pressure Reducing/Relieving
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Sensitivity	859 per turn psi
Operating Temperature	-37 to +93 °C	Flow Rate	30 L/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Sensing

Customers who bought this item also bought

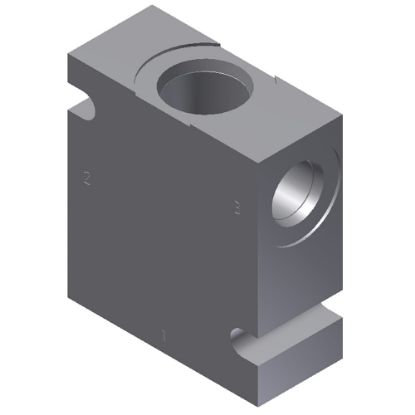

B08-3-6T - Standard Bodies
