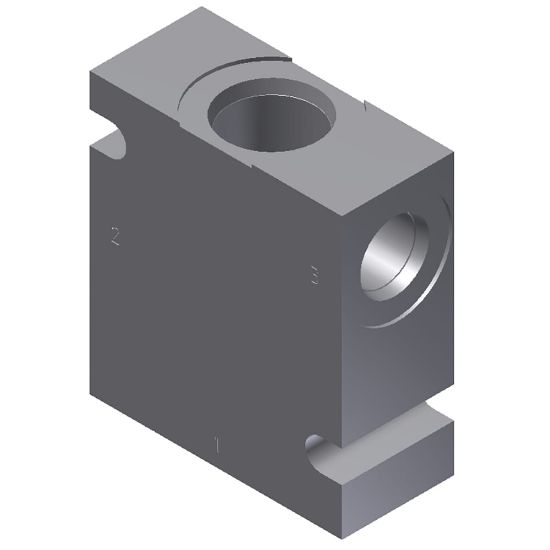

B08-3-6T - Standard Bodies

Name: B08-3-6T - Standard Bodies
SKU: B08-3-6T
Price: 71.99 USD
Availability: InStock

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

Manufacturer: Parker

Availability:

4 in stock

Wichita, KS

Partner Available:

109 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B08-3-6T

$71.99/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection Type	SAE	Number of Positions	3 way
Cavity Size	C08-3	Connection Size	-6
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Maximum Operating Pressure	5000 psi
Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Body Material	Steel	Seal Material	Determined by Threaded Cartridge Valve installed in Line Body
Weight	0.45 kg	Connection Size	-6
Connection Type	SAE	For Fluid Type	Mineral-based Hydraulic Fluids
Number of Positions	3-Way	Cavity Size	C08-3

Customers who bought this item also bought

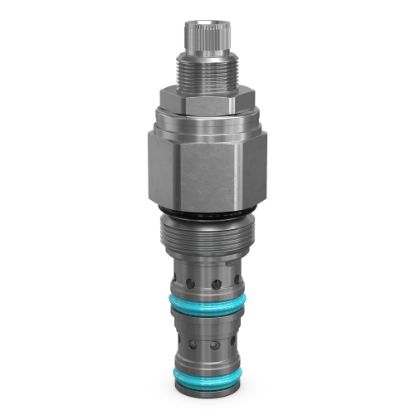

PRH081S30 - Pilot Operated Pressure Reducing Relieving Valves
