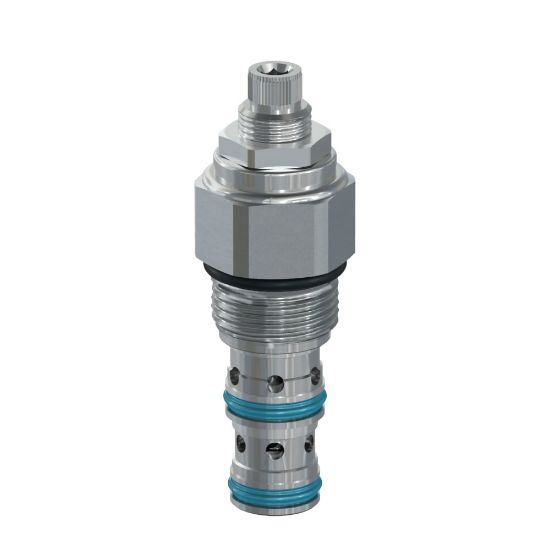

PRH101K50 - Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU PRH101K50

$89.61/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Mounting Type	Screw in cartridge valve	Cracking Pressure	N/A
Seal Material	D-Ring (Standard)	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Pressure Control Range	1200-5000 PSI, 82.8-350 BAR	Port Thread Size	N/A
Adjustment Mechanism	Knob	Cavity Size	C10-3
Minimum Operating Temperature	-37 °C	Mounting Type	Screw in cartridge valve
Pressure Control Range	82.8-350 bar	Flow Rate	56.3 L/min
Pressure Control Sensitivity	1910 per turn psi	Function	Pilot Operated
Seal Material	D-Ring (Standard)	Maximum Tank Pressure	350 bar
Maximum Inlet Pressure Rating	380 bar	Cracking Pressure	N/A psi
Maximum Drain Flow Rate	0.25 Gal/min	Standard Setting Pressure	172 bar
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+93 °C
Valve Material	All parts steel. All operating parts hardened steel	Maximum Pressure Setting	5000 psi
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	56.3 L/min
Leak Rate	N/A cc/min	Actuation Type	Pressure Sensing
Operating Temperature	-37 to +93 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Pressure Reducing/Relieving	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	5000 psi	Division	Hydraulic Systems Division
Body Material	N/A	Installation Torque	69-75 Nm
Operation Type	Automatic	Weight	0.5 lb
