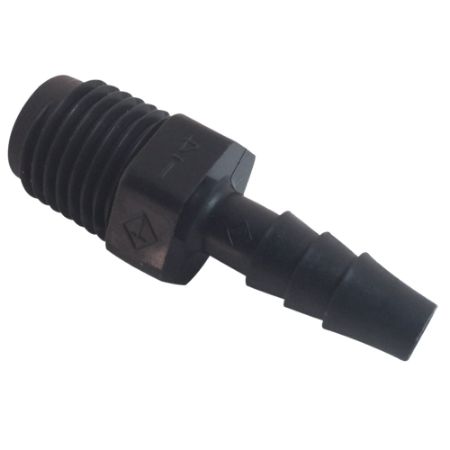

Plastic Barbed Fittings, Parker Par-Barbs

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Par-Barb fittings are injection molded from high strength chemically inert white nylon and black polypropylene materials. Both materials are FDA and NSF-51 compliant. Par-Barb fittings are specially engineered with a four barb design that generates the maximum gripping and sealing power when combined with a hose clamp. Available in barbed, pipe and garden hose configurations ranging in sizes from 1/8” to 1 ½”.

Use with a variety of rubber tubing and hoses and the following Parker Parflex Division tubing.

• Polyurethane 90-95 Durometer Shore A

• Vinyl

Markets:

• Water

• Beverage

• Semi-conductor

• Filtration

• Food

Features/Benefits:

• Molded from high strength chemically inert thermoplastic materials

• Multiple barb design generates maximum gripping and sealing

• Meets FDA and NSF-51 requirements for food contact

• White Nylon and Black Polypropylene material

• 1/8" I.D. - 1 1/2" I.D.

Applications:

• Water

• Irrigation

• Reverse Osmosis

• Deionized water systems

• Pollution control

Custom configurations and sizes are available upon request. Contact us for additional information.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Color	Product Style	Connection 1 Type	Connection 2 Size	Connection 2 Type	Connection 2 Thread Size	Connection 2 Hose I.D. (inch)	Connection 1 Size	Shape	Body Material	Configuration	Connection 3 Size	Connection 3 Type	Connection 1 Thread Size	Connection 1 Hose I.D. (inch)	Brand	Specifications Met	Application	Configuration	Maximum Operating Pressure	Connection 1 Type	Connection 1 Size	Color	Minimum Operating Temperature	Connection 3 Type	Connection 2 Type	Division	Connection 2 Size	For Fluid Type	Maximum Operating Temperature	Technology	Connection 3 Size	Media	Compatible Tube	Vacuum Pressure Rating	Division	Shape	Body Material	Dimensional Weight	Tube Material
309P-12-2PP	Backordered	Backordered	POR	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	3/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	FDA	Food Processing	Pipe to Pipe	125 psi	Male NPT	3/4	Black	10 °F	N/A	Female NPT	Fluid System Connectors Division	1/8	Air	220 °F	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene
309P-12-4N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	3/4"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	FDA	Beverage Dispensing	Pipe to Pipe	125 psi	Male NPT	3/4	White	-40 °F	N/A	Female NPT	Fluid System Connectors Division	1/4	Air	200 °F	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon
309P-12-4PP	Backordered	Backordered	POR	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	3/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	NSF 51	Chemical Dispensing	Pipe to Pipe	125 psi	Male NPT	3/4	Black	10 °F	N/A	Female NPT	Fluid System Connectors Division	1/4	Water	104 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene
309P-12-6N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	3/8"	Female Pipe	3/8"	n/a	3/4"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	FDA	Beverage Dispensing	Pipe to Pipe	125 psi	Male NPT	3/4	White	-40 °C	N/A	Female NPT	Fluid System Connectors Division	3/8	Air	93 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon
309P-12-6PP	Backordered	Backordered	$6.08/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	3/8"	Female Pipe	3/8"	n/a	3/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	FDA	Beverage Dispensing	Pipe to Pipe	125 psi	Male NPT	3/4	Black	10 °F	N/A	Female NPT	Fluid System Connectors Division	3/8	Other Compatible Fluids	104 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene
309P-12-8N	Backordered	Backordered	$4.15/each	EA	White	Female Pipe to Male Pipe	Male Pipe	1/2"	Female Pipe	1/2"	n/a	3/4"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	FDA	Food Processing	Pipe to Pipe	125 psi	Male NPT	3/4	White	-40 °C	N/A	Female NPT	Fluid System Connectors Division	1/2	Air	200 °F	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon	0.5755 lb
309P-12-8PP	Backordered	Backordered	POR	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/2"	Female Pipe	1/2"	n/a	3/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	NSF 51	Beverage Dispensing	Pipe to Pipe	8.5 bar	Male NPT	3/4	Black	-12 °C	N/A	Female NPT	Fluid System Connectors Division	1/2	Air	220 °F	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene
309P-4-2N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	1/4"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	1/4"	n/a	Parker	FDA	Beverage Dispensing	Pipe to Pipe	8.5 bar	Male NPT	1/4	White	-40 °F	N/A	Female NPT	Fluid System Connectors Division	1/8	Water	93 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon	0.5755 lb
309P-4-2PP	Backordered	1 Limited Stock	$6.76/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	1/4"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	1/4"	n/a	Parker	NSF 51	Food Processing	Pipe to Pipe	125 psi	Male NPT	1/4	Black	10 °F	N/A	Female NPT	Fluid System Connectors Division	1/8	Other Compatible Fluids	104 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene	0.5755 lb
309P-6-2N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	3/8"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/8"	n/a	Parker	FDA	Food Processing	Pipe to Pipe	125 psi	Male NPT	3/8	White	-40 °C	N/A	Female NPT	Fluid System Connectors Division	1/8	Other Compatible Fluids	93 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon
309P-6-4N	Backordered	Backordered	$5.27/each	EA	White	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	3/8"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	3/8"	n/a	Parker	NSF 51	Food Processing	Pipe to Pipe	125 psi	Male NPT	3/8	White	-40 °F	N/A	Female NPT	Fluid System Connectors Division	1/4	Other Compatible Fluids	200 °F	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon	0.5755 lb
309P-6-4PP	10 in stock	Backordered	$5.20/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	3/8"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	3/8"	n/a	Parker	FDA	Pneumatic Systems	Pipe to Pipe	125 psi	Male NPT	3/8	Black	-12 °C	N/A	Female NPT	Fluid System Connectors Division	1/4	Water	104 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene
309P-8-2N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	1/2"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	1/2"	n/a	Parker	NSF 51	Beverage Dispensing	Pipe to Pipe	8.5 bar	Male NPT	1/2	White	-40 °F	N/A	Female NPT	Fluid System Connectors Division	1/8	Other Compatible Fluids	93 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon	0.5755 lb
309P-8-2PP	Backordered	Backordered	POR	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/8"	Female Pipe	1/8"	n/a	1/2"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	1/2"	n/a	Parker	NSF 51	Beverage Dispensing	Pipe to Pipe	125 psi	Male NPT	1/2	Black	-12 °C	N/A	Female NPT	Fluid System Connectors Division	1/8	Air	104 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene
309P-8-4N	15 in stock	Backordered	$3.85/each	EA	White	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	1/2"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	1/2"	n/a	Parker	NSF 51	Beverage Dispensing	Pipe to Pipe	125 psi	Male NPT	1/2	White	-40 °C	N/A	Female NPT	Fluid System Connectors Division	1/4	Other Compatible Fluids	93 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon	0.5755 lb
309P-8-4PP	Backordered	Backordered	$5.49/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	1/4"	Female Pipe	1/4"	n/a	1/2"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	1/2"	n/a	Parker	FDA	Food Processing	Pipe to Pipe	8.5 bar	Male NPT	1/2	Black	-12 °C	N/A	Female NPT	Fluid System Connectors Division	1/4	Air	104 °C	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene	0.5755 lb
309P-8-6N	Backordered	Backordered	POR	EA	White	Female Pipe to Male Pipe	Male Pipe	3/8"	Female Pipe	3/8"	n/a	1/2"	Reducer Bushing	Nylon,White	Pipe to Pipe	N/A	N/A	1/2"	n/a	Parker	FDA	Beverage Dispensing	Pipe to Pipe	125 psi	Male NPT	1/2	White	-40 °F	N/A	Female NPT	Fluid System Connectors Division	3/8	Other Compatible Fluids	200 °F	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Nylon
309P-8-6PP	Backordered	Backordered	$5.43/each	EA	Black	Female Pipe to Male Pipe	Male Pipe	3/8"	Female Pipe	3/8"	n/a	1/2"	Reducer Bushing	Polypropylene, Black	Pipe to Pipe	N/A	N/A	1/2"	n/a	Parker	NSF 51	Food Processing	Pipe to Pipe	8.5 bar	Male NPT	1/2	Black	-12 °C	N/A	Female NPT	Fluid System Connectors Division	3/8	Water	220 °F	Fluid & Gas Handling	N/A	Water	Vinyl	-29	Fluid System Connectors Division	Reducer Bushing	Polypropylene	0.5755 lb
30GH-12	Backordered	327 in stock	$2.64/each	EA	White	Garden Hose Thread	Female Garden Hose	N/A	N/A		n/a	3/4"	Washer	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	FDA, NSF-51	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Pipe to Pipe	8.5 bar	Garden Hose	3/4	White	-40 °F	N/A	N/A	Fluid System Connectors Division	N/A		200 °F	Fluid & Gas Handling	N/A	Water, Air, Other Compatible Fluids	Vinyl	-29	Fluid System Connectors Division	Washer	Polypropylene	0.5755 lb	Vinyl, Polyurethane, Rubber Hose
313GH-12N	Backordered	Backordered	POR	EA	White	Garden Hose Thread	Female Garden Hose	N/A	N/A		n/a	3/4"	Garden Hose Cap	Nylon,White	Pipe to Pipe	N/A	N/A	3/4"	n/a	Parker	FDA, NSF-51	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Pipe to Pipe	125 psi	Female Garden Hose	3/4	White	-40 °C	N/A	N/A	Fluid System Connectors Division	N/A		200 °F	Fluid & Gas Handling	N/A	Water, Air, Other Compatible Fluids	Vinyl	-29	Fluid System Connectors Division	Garden Hose Cap	Nylon	0.5755 lb	Vinyl, Polyurethane, Rubber Hose
