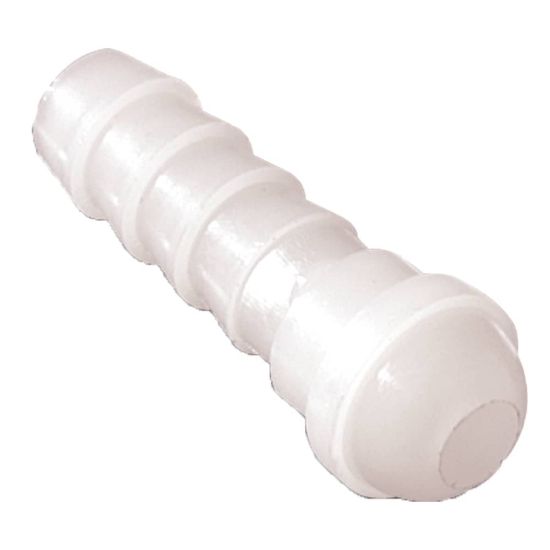

328HB-4BN - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 25 days
Partner Available:	Backordered

SKU 328HB-4BN

Products specifications

Attribute name	Attribute value
UOM	EA	Color	White
Connection 1 Size	1/4"	Connection 2 Size	1/4"
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/4" (I.D.)
Connection 2 Thread Size	1/4"	Connection 2 Hose I.D. (inch)	n/a
Connection 2 Type	NPT Swivel Nut	Body Material	Nylon,White
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Type	Barbed	Shape	Ball Nose Stem
Configuration	Barb to Ball Nose	Product Style	Ball Nose Hose Barb Stem
Brand	Parker	Connection 3 Type	N/A
Minimum Operating Temperature	-40 °C	Connection 2 Type	Female NPT
Application	Food Processing	Specifications Met	FDA
Technology	Fluid & Gas Handling	Media	Water
Connection 3 Size	N/A	Color	White
Connection 1 Size	1/4	For Fluid Type	Water
Division	Fluid System Connectors Division	Maximum Operating Temperature	93 °C
Compatible Tube	Vinyl	Connection 2 Size	1/4
Connection 1 Type	Barbed	Configuration	Tube to Pipe
Maximum Operating Pressure	125 psi	Shape	Ball Nose Stem
Vacuum Pressure Rating	-29	Body Material	Nylon
Division	Fluid System Connectors Division
