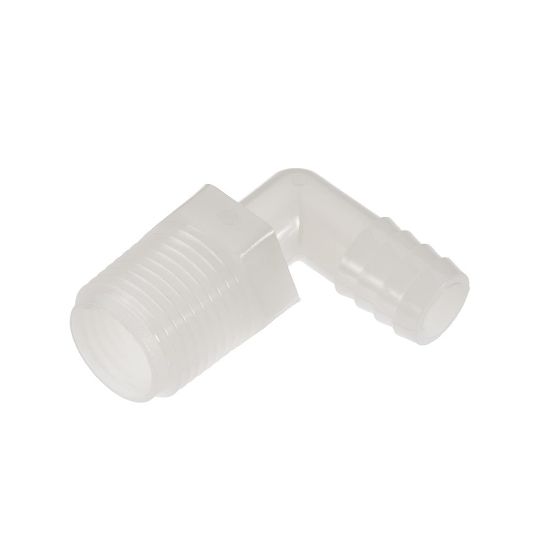

329HB-3-2N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	5 in stock

SKU 329HB-3-2N

$1.43/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Color	White
Shape	Elbow 90°	Connection 2 Size	1/8"
Connection 2 Type	Male Pipe	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	3/16" (I.D.)	Configuration	Barb to Pipe
Connection 2 Thread Size	1/8"	Connection 2 Hose I.D. (inch)	n/a
Connection 1 Size	3/16"	Body Material	Nylon,White
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Type	Barbed	Vacuum Pressure Rating	-29
Maximum Operating Pressure	125 psi	Body Material	Nylon
Shape	90° Elbow	Division	Fluid System Connectors Division
Specifications Met	NSF 51	Brand	Parker
Application	Chemical Dispensing	Configuration	Tube to Pipe
Connection 1 Type	Barbed	Dimensional Weight	0.5755 lb
Media	Water	Color	White
Connection 1 Size	3/16	Minimum Operating Temperature	-40 °C
Connection 3 Type	N/A	Connection 2 Type	Male NPT
Connection 2 Size	1/8	Division	Fluid System Connectors Division
Maximum Operating Temperature	93 °C	For Fluid Type	Air
Technology	Fluid & Gas Handling	Connection 3 Size	N/A
Compatible Tube	Rubber Hose
