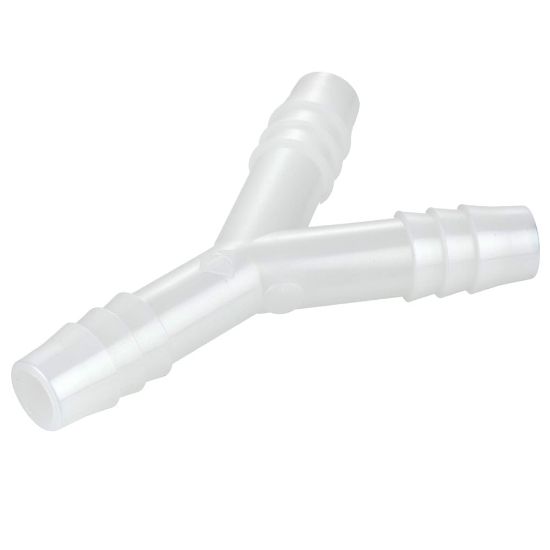

362HB-8N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 25 days
Partner Available:	2 Limited Stock

SKU 362HB-8N

$11.30/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Color	White
Connection 1 Size	1/2"	Connection 2 Size	1/2"
Connection 2 Type	Barb	Configuration	Barb to Barb
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/2" (I.D.)
Connection 2 Hose I.D. (inch)	1/2" (I.D.)	Connection 3 Size	1/2"
Body Material	Nylon,White	Connection 1 Type	Barbed
Shape	Union Wye	Connection 3 Type	Barbed
Division	Fluid System Connectors Division	Maximum Operating Temperature	93 °C
Compatible Tube	Rubber Hose	Connection 2 Size	1/4
Connection 1 Type	Barbed	Body Material	Nylon
Maximum Operating Pressure	125 psi	Configuration	Tube to Tube
Vacuum Pressure Rating	-29	Shape	Wye
Division	Fluid System Connectors Division	Connection 3 Type	Barbed
Connection 2 Type	Barbed	Specifications Met	FDA, NSF-51
Minimum Operating Temperature	-40 °C	Brand	Parker
Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Media	Water, Air, Other Compatible Fluids
Tube Material	Vinyl, Polyurethane, Rubber Hose	Technology	Fluid & Gas Handling
Connection 3 Size	1/4	Connection 1 Size	1/4
Color	White
