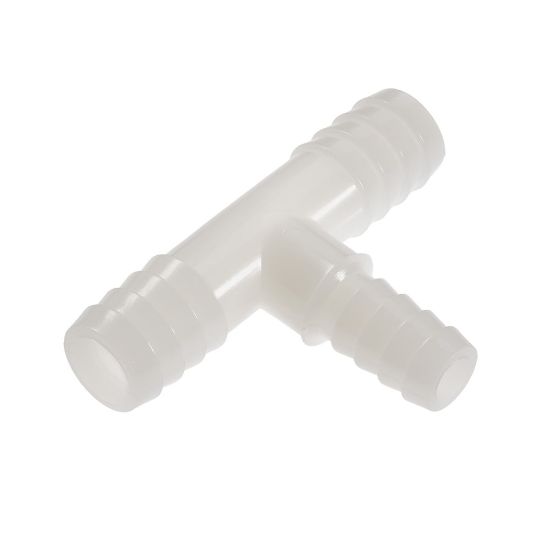

364HB-5N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	45 in stock

SKU 364HB-5N

$1.49/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Color	White	Connection 2 Type	Barb
Configuration	Barb to Barb	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	5/16" (I.D.)	Connection 2 Hose I.D. (inch)	5/16" (I.D.)
Connection 2 Size	5/16"	Connection 1 Size	5/16"
Connection 3 Size	5/16"	Body Material	Nylon,White
Connection 1 Type	Barbed	Connection 3 Type	Barbed
Color	White	Connection 1 Size	5/16
Minimum Operating Temperature	-40 °C	Connection 3 Type	Barbed
Connection 2 Type	Barbed	Specifications Met	FDA, NSF-51
Brand	Parker	Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing
Technology	Fluid & Gas Handling	Connection 3 Size	5/16
Compatible Tube	Rubber Hose	Tube Material	Vinyl, Polyurethane, Rubber Hose
Media	Water, Air, Other Compatible Fluids	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	Connection 2 Size	5/16
Division	Fluid System Connectors Division	Configuration	Tube to Tube
Connection 1 Type	Barbed	Shape	Tee
Body Material	Nylon	Vacuum Pressure Rating	-29
Maximum Operating Pressure	8.5 bar
