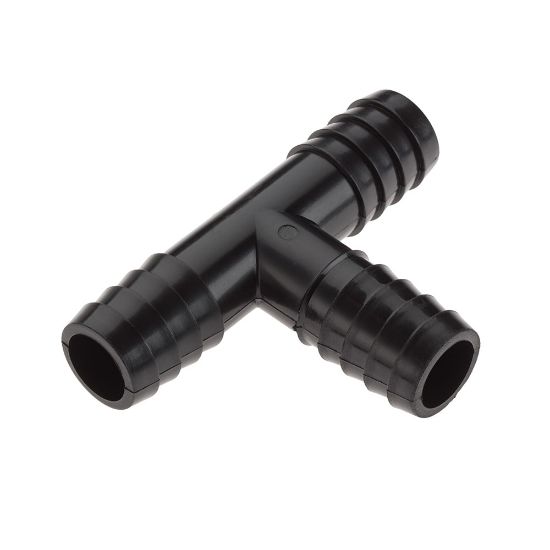

364HB-6-8PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 364HB-6-8PP

$1.05/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Color	Black	Connection 1 Size	3/8"
Connection 2 Size	3/8"	Connection 2 Type	Barb
Configuration	Barb to Barb	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	3/8" (I.D.)	Connection 2 Hose I.D. (inch)	1/2" (I.D.)
Connection 3 Size	1/2"	Body Material	Polypropylene, Black
Connection 1 Type	Barbed	Connection 3 Type	Barbed
Maximum Operating Temperature	104 °C	Division	Fluid System Connectors Division
Connection 2 Size	3/8	Connection 1 Type	Barbed
Configuration	Tube to Tube	Maximum Operating Pressure	8.5 bar
Shape	Tee	Body Material	Polypropylene
Vacuum Pressure Rating	-29	Division	Fluid System Connectors Division
Connection 2 Type	Barbed	Minimum Operating Temperature	-12 °C
Connection 3 Type	Barbed	Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing
Brand	Parker	Specifications Met	FDA, NSF-51
Media	Water, Air, Other Compatible Fluids	Connection 3 Size	1/2
Compatible Tube	Polyurethane	Tube Material	Vinyl, Polyurethane, Rubber Hose
Technology	Fluid & Gas Handling	Color	Black
Connection 1 Size	3/8
