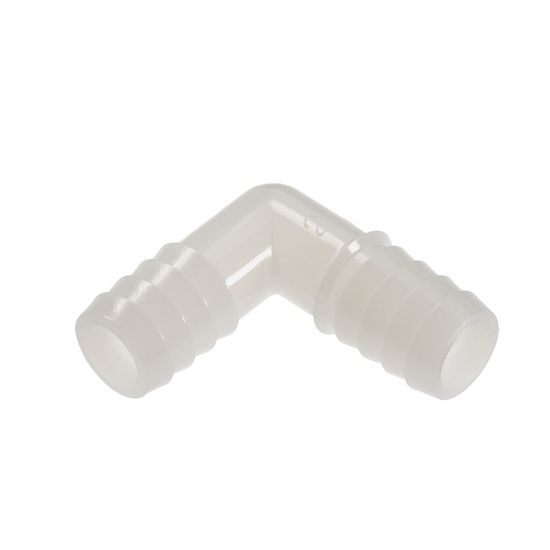

365HB-10N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	532 in stock

SKU 365HB-10N

$1.55/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Color	White
Shape	Elbow 90°	Connection 2 Type	Barb
Configuration	Barb to Barb	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	5/8" (I.D.)	Connection 2 Size	5/8"
Connection 1 Size	5/8"	Body Material	Nylon,White
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Type	Barbed	Connection 2 Hose I.D. (inch)	5/8" (I.D.)
Tube Material	Vinyl, Polyurethane, Rubber Hose	Technology	Fluid & Gas Handling
Connection 3 Size	N/A	Media	Water, Air, Other Compatible Fluids
Minimum Operating Temperature	-40 °C	Connection 1 Size	5/8
Connection 3 Type	N/A	Color	White
Connection 2 Type	Barbed	Division	Fluid System Connectors Division
Connection 2 Size	5/8	Compatible Tube	Polyurethane
Maximum Operating Temperature	200 °F	Maximum Operating Pressure	8.5 bar
Vacuum Pressure Rating	-29	Body Material	Nylon
Connection 1 Type	Barbed	Division	Fluid System Connectors Division
Shape	90° Elbow	Brand	Parker
Specifications Met	FDA, NSF-51	Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing
Configuration	Tube to Tube	Dimensional Weight	0.5755 lb
