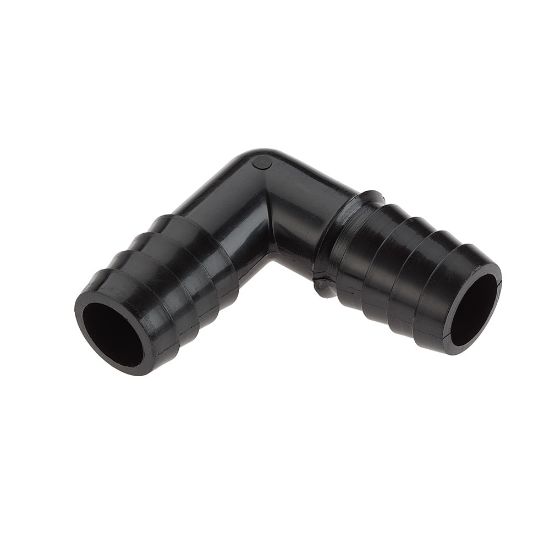

365HB-10PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	40 in stock

SKU 365HB-10PP

$1.52/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Color	Black
Shape	Elbow 90°	Connection 2 Type	Barb
Configuration	Barb to Barb	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	5/8" (I.D.)	Connection 2 Size	5/8"
Connection 1 Size	5/8"	Body Material	Polypropylene, Black
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Type	Barbed	Connection 2 Hose I.D. (inch)	5/8" (I.D.)
Configuration	Tube to Tube	Maximum Operating Pressure	125 psi
Connection 1 Type	Barbed	Shape	90° Elbow
Body Material	Polypropylene	Vacuum Pressure Rating	-29
Division	Fluid System Connectors Division	Minimum Operating Temperature	-12 °C
Connection 3 Type	N/A	Connection 2 Type	Barbed
Specifications Met	FDA, NSF-51	Brand	Parker
Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Technology	Fluid & Gas Handling
Media	Water, Air, Other Compatible Fluids	Connection 3 Size	N/A
Tube Material	Vinyl, Polyurethane, Rubber Hose	Compatible Tube	Vinyl
Color	Black	Connection 1 Size	5/8
Maximum Operating Temperature	104 °C	Connection 2 Size	5/8
Division	Fluid System Connectors Division
