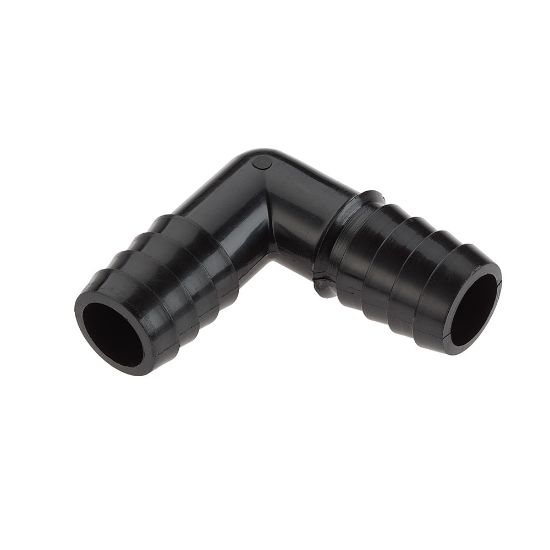

365HB-8-4PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 365HB-8-4PP

$1.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Color	Black
Shape	Elbow 90°	Connection 1 Size	1/2"
Connection 2 Size	1/4"	Connection 2 Type	Barb
Configuration	Barb to Barb	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	1/2" (I.D.)	Connection 2 Hose I.D. (inch)	1/4" (I.D.)
Body Material	Polypropylene, Black	Connection 3 Size	N/A
Connection 3 Type	N/A	Connection 1 Type	Barbed
Division	Fluid System Connectors Division	Maximum Operating Temperature	104 °C
Compatible Tube	Rubber Hose	Connection 2 Size	1/4
Vacuum Pressure Rating	-29	Body Material	Polypropylene
Connection 1 Type	Barbed	Maximum Operating Pressure	125 psi
Division	Fluid System Connectors Division	Shape	90° Elbow
Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Specifications Met	FDA, NSF-51
Brand	Parker	Configuration	Tube to Tube
Media	Water, Air, Other Compatible Fluids	Tube Material	Vinyl, Polyurethane, Rubber Hose
Connection 3 Size	N/A	Technology	Fluid & Gas Handling
Connection 2 Type	Barbed	Connection 1 Size	1/2
Color	Black	Minimum Operating Temperature	10 °F
Connection 3 Type	N/A
