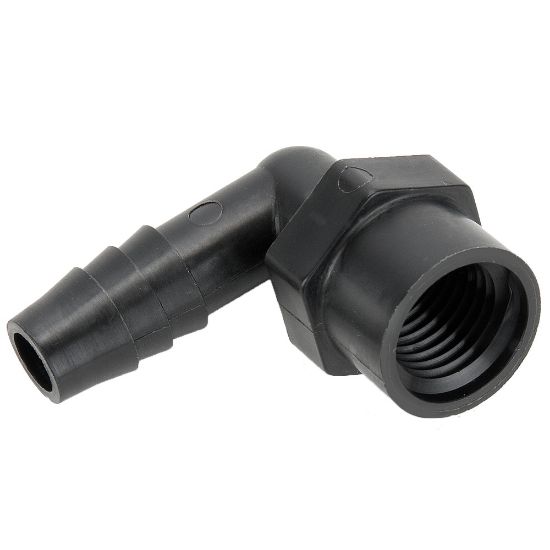

370HB-4-6PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 25 days
Partner Available:	Backordered

SKU 370HB-4-6PP

Products specifications

Attribute name	Attribute value
UOM	EA	Color	Black
Shape	Elbow 90°	Connection 1 Size	1/4"
Connection 2 Size	3/8"	Connection 2 Type	Female Pipe
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/4" (I.D.)
Configuration	Barb to Female Pipe	Connection 2 Thread Size	3/8"
Connection 2 Hose I.D. (inch)	n/a	Body Material	Polypropylene, Black
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Type	Barbed	Division	Fluid System Connectors Division
Connection 2 Size	3/8	For Fluid Type	Other Compatible Fluids
Maximum Operating Temperature	220 °F	Compatible Tube	Vinyl
Technology	Fluid & Gas Handling	Connection 3 Size	N/A
Vacuum Pressure Rating	-29	Body Material	Polypropylene
Division	Fluid System Connectors Division	Shape	90° Elbow
Brand	Parker	Specifications Met	FDA
Application	Pneumatic Systems	Configuration	Tube to Pipe
Maximum Operating Pressure	125 psi	Connection 1 Type	Barbed
Color	Black	Media	Water
Connection 1 Size	1/4	Minimum Operating Temperature	10 °F
Connection 3 Type	N/A	Connection 2 Type	Female NPT
