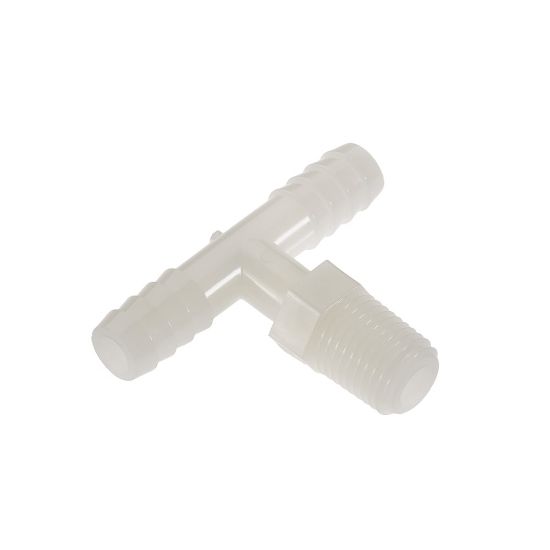

372HB-4-2N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	25 in stock

SKU 372HB-4-2N

$1.60/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Branch Tee
Color	White	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Connection 2 Type	Male Pipe
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/4" (I.D.)
Configuration	Barb to Pipe	Connection 2 Thread Size	1/8"
Connection 2 Hose I.D. (inch)	n/a	Connection 3 Size	1/8"
Connection 3 Type	Male NPT	Body Material	Nylon,White
Connection 1 Type	Barbed	Minimum Operating Temperature	-40 °F
Brand	Parker	Specifications Met	NSF 51
Dimensional Weight	0.5755 lb	Configuration	Tube to Pipe
Application	Chemical Dispensing	Technology	Fluid & Gas Handling
Connection 3 Size	1/8	Media	Water
Connection 1 Size	1/4	Connection 3 Type	Male NPT
Color	White	Connection 2 Type	Barbed
Division	Fluid System Connectors Division	For Fluid Type	Other Compatible Fluids
Compatible Tube	Rubber Hose	Connection 2 Size	1/4
Maximum Operating Temperature	200 °F	Maximum Operating Pressure	125 psi
Body Material	Polypropylene	Vacuum Pressure Rating	-29
Connection 1 Type	Barbed	Division	Fluid System Connectors Division
Shape	Branch Tee
