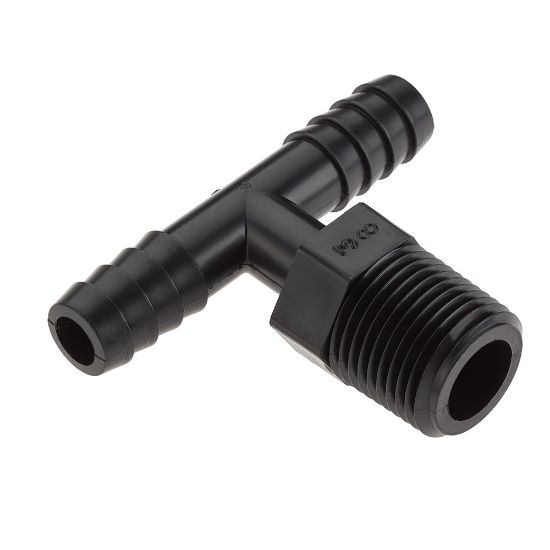

372HB-4-6PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 372HB-4-6PP

$1.19/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Branch Tee
Color	Black	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Connection 2 Type	Male Pipe
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/4" (I.D.)
Configuration	Barb to Pipe	Connection 2 Thread Size	3/8"
Connection 2 Hose I.D. (inch)	n/a	Connection 3 Size	3/8"
Connection 3 Type	Male NPT	Body Material	Polypropylene, Black
Connection 1 Type	Barbed	Technology	Fluid & Gas Handling
Connection 3 Size	3/8	Compatible Tube	Vinyl
Color	Black	Media	Water
Maximum Operating Temperature	104 °C	For Fluid Type	Air
Division	Fluid System Connectors Division	Connection 2 Size	1/4
Connection 1 Type	Barbed	Configuration	Tube to Pipe
Maximum Operating Pressure	125 psi	Body Material	Polypropylene
Shape	Branch Tee	Vacuum Pressure Rating	-29
Division	Fluid System Connectors Division	Connection 2 Type	Barbed
Connection 3 Type	Male NPT	Connection 1 Size	1/4
Minimum Operating Temperature	-12 °C	Application	Beverage Dispensing
Brand	Parker	Specifications Met	NSF 51
