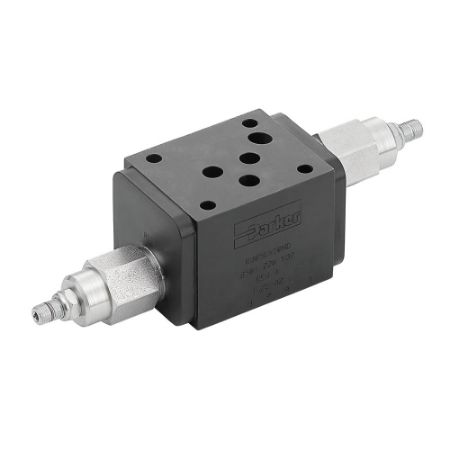

Pressure Relief Sandwich Valve – RV Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parkers RV series relief valve function options are P to T, A to T, B to T or A & B to T. Another option is for A to B & B to A crossover relief functions.
Markets:
• Factory Automation
• Lumber & Wood
• Machine Tools
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Packaging Machinery
• Plastic Processing
• Primary Metal Refining Process
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• High flow capacity
• Available in 4 port sizes
• Pressure function in P, A, B or A + B
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Factory Automation
• Lumber & Wood
• Machine Tools
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Packaging Machinery
• Plastic Processing
• Primary Metal Refining Process
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• High flow capacity
• Available in 4 port sizes
• Pressure function in P, A, B or A + B
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | UOM | Size | Port Connection | Pressure Range (psi) | Weight | Body Material | Maximum Flow Rate | Division | Maximum Operating Temperature | Seal Material | Allowable Circuit Leakage | Media | Minimum Operating Temperature | Product Style | Mounting Type | Filter Efficiency Rating | Actuation Type | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RV05AT20ND | Backordered | Backordered | $1,323.00/each | EA | NFPA D05; CETOP 5; NG10 | A to T | 1000 to 6000 | 2.2 kg | Ductile Iron | 50 Gal/min | Hydraulic Valve Systems Division | +176 °F | Nitrile | 10 DPM | Oil | -4 °F | Pressure Relief Valve | Subplate | ISO 4406 (1999); 18/16/13 (meet NAS 1638:7) | Hydraulic Pressure | 5000 psi | |
| RV05DX10NA | Backordered | Backordered | $1,470.84/each | EA | NFPA D05; CETOP 5; NG10 | A to B and B to A | 500 to 3000 | 1.4 kg | Aluminum | 50 Gal/min | Hydraulic Valve Systems Division | +176 °F | Nitrile | 10 DPM | Oil | -4 °F | Pressure Relief Valve | Subplate | ISO 4406 (1999); 18/16/13 (meet NAS 1638:7) | Hydraulic Pressure | 3000 psi | |
| RV05PT10NA | Backordered | Backordered | $818.40/each | EA | NFPA D05; CETOP 5; NG10 | P to T | 500 to 3000 | 1 kg | Aluminum | 50 Gal/min | Hydraulic Valve Systems Division | +176 °F | Nitrile | 10 DPM | Oil | -4 °F | Pressure Relief Valve | Subplate | ISO 4406 (1999); 18/16/13 (meet NAS 1638:7) | Hydraulic Pressure | 3000 psi |
