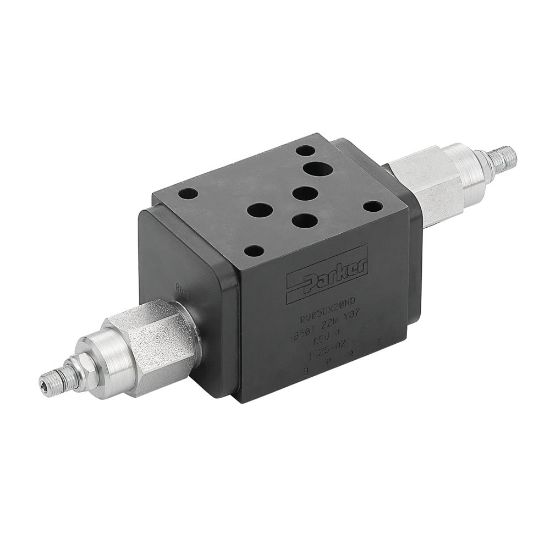

RV05DX10NA - Pressure Relief Sandwich Valve – RV Series

Parkers RV series direct acting, pressure relief valves are designed to limit pressure in various parts of a hydraulic circuit.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU RV05DX10NA

$1,470.84/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Range (psi)	500 to 3000
Size	NFPA D05; CETOP 5; NG10	Port Connection	A to B and B to A
Maximum Flow Rate	50 Gal/min	Division	Hydraulic Valve Systems Division
Maximum Operating Temperature	+176 °F	Seal Material	Nitrile
Media	Oil	Allowable Circuit Leakage	10 DPM
Minimum Operating Temperature	-4 °F	Product Style	Pressure Relief Valve
Mounting Type	Subplate	Filter Efficiency Rating	ISO 4406 (1999); 18/16/13 (meet NAS 1638:7)
Actuation Type	Hydraulic Pressure	Maximum Operating Pressure	3000 psi
Weight	1.4 kg	Body Material	Aluminum
