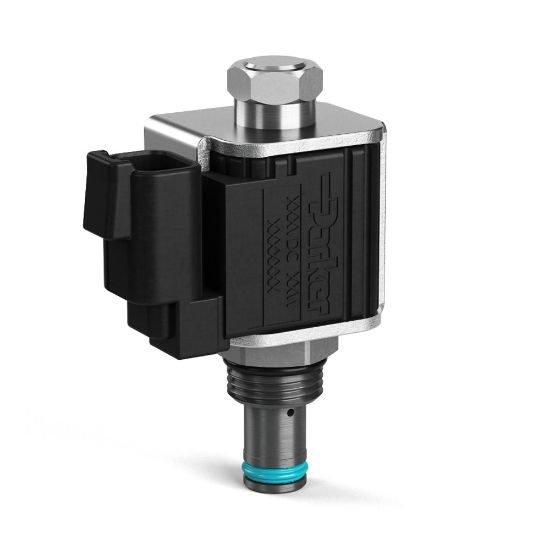

AP02B2YP14C - Pressure Relieving Proportional Valve

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU AP02B2YP14C

$116.09/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	0.9 GAL/MIN, 3.4 L/MIN
Configuration	Increasing Pressure/Increasing Current	Seal Material	D-Ring (Standard)
Maximum Relief Pressure	2000 PSI, 140 BAR	Mounting Type	Screw-in Cartridge
Pressure Control Range	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	SAE Class 4	Coil Nut Tightening Torque	3 lb-ft
Configuration	Increasing Pressure/Increasing Current	Actuation Type	Electrical
Operating Temperature	-35 to 200 °F	Flow Rate	1.4 Gal/min
Cracking Pressure	0.14 bar	Flow Direction	Nose to Side (1-2)
Function	Proportional Pressure Relief	Minimum Operating Temperature	-35 °F
Maximum Relief Pressure	2000 psi	Cavity Size	C08-2
Power Consumption	19 W	Frequency	100 to 400 Hz
Coil Type	1/2" Super Coil High Watt (CCP)	Leak Rate	30
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	5.3 L/min
For Fluid Type	Synthetic Hydraulic Fluids	Maximum Pressure Setting	n/a
Seal Material	D-Ring (Standard)	Maximum Inlet Pressure Rating	5000 psi
Hysteresis	5 %	Valve Material	Hardened Steel
Maximum Operating Temperature	93 °C	Weight	0.14 lb
Maximum Operating Pressure	2000 psi	Body Material	n/a
Installation Torque	22 lb-ft	Operation Type	Solenoid Operated
Division	Hydraulic Systems Division
