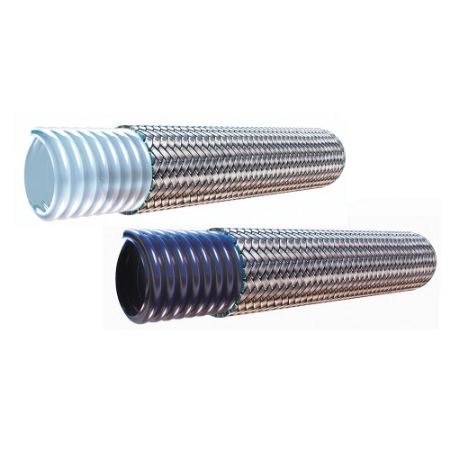

PTFE Hose - Convoluted
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 939/939B series convoluted PTFE hoses feature superior flexibility and kink resistance for successful operation in chemical transfer, high temperature hydraulics, and hose applications that require tight routings. In addition, the flexible capabilities of the hose allow for an improved bend radius than a 919/919B hose for simplified routing and installation. This hose series is offered with a natural, FDA compliant core tube (939) or with a static dissipative core tube (939B) for applications where electrostatic charges could occur during media transfer.
Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Markets:
• Fluid Handling
• Transportation
• Military
• Industrial
Features/Benefits:
• Excellent flexibility
• Kink resistance for simplified routing and installation
• Great chemical compatibility
• High temperature capability
Applications:
• Chemical transfer
• General hydraulics
• Hose applications requiring tight routings
• High temperature media transfer
Certifications/Compliance:
• FDA CFR 177.1550 (939 only)
Technical Specifications:
• Use hose type 939B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Not suggested for steam-cold water cycling applications
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Markets:
• Fluid Handling
• Transportation
• Military
• Industrial
Features/Benefits:
• Excellent flexibility
• Kink resistance for simplified routing and installation
• Great chemical compatibility
• High temperature capability
Applications:
• Chemical transfer
• General hydraulics
• Hose applications requiring tight routings
• High temperature media transfer
Certifications/Compliance:
• FDA CFR 177.1550 (939 only)
Technical Specifications:
• Use hose type 939B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Not suggested for steam-cold water cycling applications
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Size | Hose Type | Application | Specifications Met | Hose Reinforcement Material | Minimum Bend Radius | Cover Material | Minimum Operating Temperature | Vacuum Pressure Rating | Inside Diameter | Weight | Maximum Operating Pressure | Outside Diameter | Maximum Operating Temperature | Size | Division | Media | Hose Inner Tube Material | Design Factor | Compatible Fitting | Product Style | Hose Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 939-12 | Backordered | 73 in stock | $67.35/foot | FT | 3/4 | -12 | Natural PTFE | Instrumentation | FDA 21 CFR 177.1550 (Tube) | Stainless Steel | 95 mm | n/a | -100 °F | 711.2 mm-Hg | 19 mm | 0.47 kg/m | 7.6 MPa | 27.7 mm | 450 °F | -12 | Parflex Division | Fuels (Oil) | Polytetrafluoroethylene (PTFE) | 4:1 | 93N Series | |||
| 939-16 | 27 in stock | 102 in stock | $62.17/foot | FT | 1 | -16 | Natural PTFE | Ultra High Purity / Semi-Conductor | FDA 21 CFR 177.1550 (Tube) | Stainless Steel | 127 mm | n/a | -100 °F | 711.2 mm-Hg | 25 mm | 0.67 kg/m | 6.9 MPa | 33.8 mm | 450 °F | -16 | Parflex Division | Chemicals | Polytetrafluoroethylene (PTFE) | 4:1 | 93N Series Cannot be crimped on Minikrimp | |||
| 939-20 | 8 in stock | 12 in stock | $87.88/foot | FT | 1-1/4 | -20 | Natural PTFE | Compressed Air/Gases | FDA 21 CFR 177.1550 (Tube) | Stainless Steel | 6-1/4 inch | n/a | -73 °C | 20 Inch-Hg | 1-1/4 inch | 1.04 kg/m | 69 bar | 44.5 mm | 450 °F | -20 | Parflex Division | Inert Gases | Polytetrafluoroethylene (PTFE) | 4:1 | 93N Series Cannot be crimped on Minikrimp | |||
| 939-24 | Backordered | 91 in stock | $142.22/foot | FT | 1-1/2 | -24 | Natural PTFE | Chemical Transfer | FDA 21 CFR 177.1550 (Tube) | Stainless Steel | 7-1/2 inch | n/a | -73 °C | 304.8 mm-Hg | 38 mm | 0.80 lb/ft | 52 bar | 52.1 mm | 232 °C | -24 | Parflex Division | Lubricants (Oils) | Polytetrafluoroethylene (PTFE) | 4:1 | 93N Series Cannot be crimped on Minikrimp | |||
| 939-32 | Backordered | 15 in stock | $176.38/foot | FT | 2 | -32 | Natural PTFE | Chemical Transfer | FDA 21 CFR 177.1550 (Tube) | Stainless Steel | 10 inch | n/a | -100 °F | 127 mm-Hg | 2 inch | 1.01 lb/ft | 17 bar | 2.560 inch | 450 °F | -32 | Parflex Division | Industrial Gases | Polytetrafluoroethylene (PTFE) | 4:1 | 93N Series Cannot be crimped on Minikrimp | |||
| 939-6 | 46 in stock | 12 in stock | $39.11/foot | FT | 3/8 | -6 | Natural PTFE | Fleet & Automotive | FDA 21 CFR 177.1550 (Tube) | Stainless Steel | 2-1/4 inch | n/a | -73 °C | 28 Inch-Hg | 10 mm | 0.12 lb/ft | 103 bar | 15 mm | 450 °F | -6 | Parflex Division | Petroleum Hydraulic Fluids | Polytetrafluoroethylene (PTFE) | 4:1 | 93N Series | |||
| 939-8 | 64 in stock | 211 in stock | $41.49/foot | FT | 1/2 | -8 | Natural PTFE | Chemical Transfer | FDA 21 CFR 177.1550 (Tube) | Stainless Steel | 2-7/8 inch | n/a | -73 °C | 711.2 mm-Hg | 13 mm | 0.31 kg/m | 9.3 MPa | 20.1 mm | 232 °C | -8 | Parflex Division | Water | Polytetrafluoroethylene (PTFE) | 4:1 | 93N Series | |||
| 939B-10 | Backordered | 28 in stock | $79.49/foot | FT | 5/8 | -10 | Static Dissipative PTFE | Fluid Handling | n/a | Stainless Steel | 3 inch | n/a | -100 °F | 711.2 mm-Hg | 5/8 inch | 0.24 lb/ft | 1000 psi | 0.880 inch | 232 °C | -10 | Parflex Division | Industrial Gases | Polytetrafluoroethylene (PTFE) Static Dissipative | 4:1 | 93N Series | Static Dissipative | Static Dissipative | |
| 939B-12 | 165 in stock | 31 in stock | $48.24/foot | FT | 3/4 | -12 | Static Dissipative PTFE | Fleet & Automotive | n/a | Stainless Steel | 95 mm | n/a | -73 °C | 28 Inch-Hg | 3/4 inch | 0.47 kg/m | 1100 psi | 27.7 mm | 450 °F | -12 | Parflex Division | Fuels (Oil) | Polytetrafluoroethylene (PTFE) Static Dissipative | 4:1 | 93N Series | Static Dissipative | Static Dissipative | |
| 939B-16 | 150 in stock | 278 in stock | $57.82/foot | FT | 1 | -16 | Static Dissipative PTFE | Tools & Equipment | n/a | Stainless Steel | 5 inch | n/a | -100 °F | 711.2 mm-Hg | 1 inch | 0.67 kg/m | 6.9 MPa | 33.8 mm | 450 °F | -16 | Parflex Division | Food & Beverage | Polytetrafluoroethylene (PTFE) Static Dissipative | 4:1 | 93N Series Cannot be crimped on Minikrimp | Static Dissipative | Static Dissipative | |
| 939B-20 | Backordered | 154 in stock | $105.37/foot | FT | 1-1/4 | -20 | Static Dissipative PTFE | Tools & Equipment | n/a | Stainless Steel | 159 mm | n/a | -73 °C | 20 Inch-Hg | 1-1/4 inch | 1.04 kg/m | 69 bar | 1.750 inch | 450 °F | -20 | Parflex Division | Fuels (Oil) | Polytetrafluoroethylene (PTFE) Static Dissipative | 4:1 | 93N Series Cannot be crimped on Minikrimp | Static Dissipative | Static Dissipative | |
| 939B-24 | 34 in stock | 63 in stock | $93.13/foot | FT | 1-1/2 | -24 | Static Dissipative PTFE | Chemical Transfer | n/a | Stainless Steel | 7-1/2 inch | n/a | -100 °F | 12 Inch-Hg | 1-1/2 inch | 1.18 kg/m | 750 psi | 52.1 mm | 450 °F | -24 | Parflex Division | Inert Gases | Polytetrafluoroethylene (PTFE) Static Dissipative | 4:1 | 93N Series Cannot be crimped on Minikrimp | Static Dissipative | Static Dissipative | |
| 939B-32 | 160 in stock | 2 Limited Stock | $127.19/foot | FT | 2 | -32 | Static Dissipative PTFE | Instrumentation | n/a | Stainless Steel | 254 mm | n/a | -100 °F | 5 Inch-Hg | 51 mm | 1.01 lb/ft | 1.7 MPa | 65 mm | 450 °F | -32 | Parflex Division | Industrial Fluids | Polytetrafluoroethylene (PTFE) Static Dissipative | 4:1 | 93N Series Cannot be crimped on Minikrimp | Static Dissipative | Static Dissipative | |
| 939B-6 | Backordered | 79 in stock | $49.14/foot | FT | 3/8 | -6 | Static Dissipative PTFE | Instrumentation | n/a | Stainless Steel | 57 mm | n/a | -100 °F | 711.2 mm-Hg | 10 mm | 0.12 lb/ft | 10.3 MPa | 0.590 inch | 232 °C | -6 | Parflex Division | Industrial Fluids | Polytetrafluoroethylene (PTFE) Static Dissipative | 4:1 | 93N Series | Static Dissipative | Static Dissipative | |
| 939B-8 | 129 in stock | 790 in stock | $34.80/foot | FT | 1/2 | -8 | Static Dissipative PTFE | Process Control | n/a | Stainless Steel | 2-7/8 inch | n/a | -100 °F | 711.2 mm-Hg | 1/2 inch | 0.21 lb/ft | 1350 psi | 0.790 inch | 450 °F | -8 | Parflex Division | Industrial Fluids | Polytetrafluoroethylene (PTFE) Static Dissipative | 4:1 | 93N Series | Static Dissipative | Static Dissipative |
