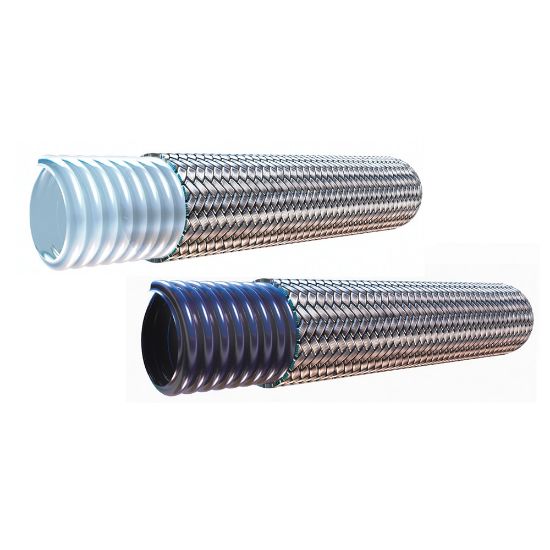

939B-16 - PTFE Hose - Convoluted

Name: 939B-16 - PTFE Hose - Convoluted
SKU: 939B-16
Price: 57.82 USD
Availability: InStock

Parker Convoluted 939/939B PTFE Hose features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings.

Manufacturer: Parker

Availability:

150 in stock

Olivette, MO

150

Partner Available:

276 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 939B-16

$57.82/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Size	-16	Hose Type	Static Dissipative PTFE
Size	-16	Division	Parflex Division
Maximum Operating Temperature	450 °F	Compatible Fitting	93N Series Cannot be crimped on Minikrimp
Hose Type	Static Dissipative	Media	Food & Beverage
Design Factor	4:1	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative
Product Style	Static Dissipative	Hose Reinforcement Material	Stainless Steel
Specifications Met	n/a	Application	Tools & Equipment
Minimum Operating Temperature	-100 °F	Minimum Bend Radius	5 inch
Cover Material	n/a	Inside Diameter	1 inch
Maximum Operating Pressure	6.9 MPa	Weight	0.67 kg/m
Vacuum Pressure Rating	711.2 mm-Hg	Outside Diameter	33.8 mm
