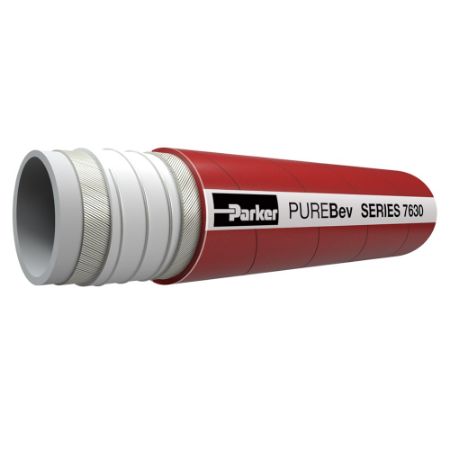

PUREBev Hose Series 7630

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

As part of Parker’s PURE Food and Beverage Hose line, PUREBev Series 7630 is a high quality, low permeation, flexible delivery and suction hose. Our color coded hose allows for simple product selection and is built to withstand harsh processing applications, where hoses are subject to multiple cycles of sanitary cleaning methods, like clean-in-place (CIP) a simplification process using aggressive cleaning agents and high temperatures to maintain sanitary conditions. Produced on stainless steel mandrels the clean innertube is made of FDA-compliant materials and applied in a seamless manner to eliminate voids or gaps where bacteria could accumulate. Series 7630 is designed to convey beer, wine, potable water and many other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.
Markets:
• Food & Beverage
Features/Benefits:
• PURE hose is color coded for simple product selection
• FDA compliant innertube
• Low permeation
Applications:
• Alcohol/ spirits (concentration up to 96%)
• Beer
• Wine
• Potable water

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Application	Hose I.D. (inch)	Meets Industry Specifications	Hose O.D. (inch)	Media	Maximum Operating Temperature	Hose Inner Tube Material	Minimum Burst Pressure	Application	Specifications Met	Hose Reinforcement Material	Cover Structure	Minimum Operating Temperature	Minimum Bend Radius	Vacuum Pressure Rating	Weight	Inside Diameter	Maximum Operating Pressure	Outside Diameter	Division
7630-1000	Backordered	50 in stock	$31.41/foot	FT	Beverage Transfer	1	FDA, DM, CE, 3A,MHLW, REACH, GMP	1.5	Water (Potable Water)	120 °C	Butyl	750 psi	Consumable Liquids	MHLW	Galvanized Wire Helix	Smooth	-40 °C	3.94 inch	90 kPa	0.69 lb/ft	25 mm	16 bar	40 mm	Hose Products Division
7630-2000	Backordered	84 in stock	$41.41/foot	FT	Beverage Transfer	2	FDA, DM, CE, 3A,MHLW, REACH, GMP	2.6	Food & Beverage (Wine)	248 °F	Phtalates Free	48 bar	Consumable Liquids	DM	Galvanized Wire Helix	Smooth	-40 °C	8.46 inch	90 kPa	1.31 lb/ft	51 mm	250 psi	66 mm	Hose Products Division
7630-2500	Backordered	Backordered	$38.68/foot	FT	Beverage Transfer	2.5	FDA, DM, CE, 3A,MHLW, REACH, GMP	3.19	Food & Beverage (Beer)	120 °C	White	48 bar	Beverage (Wine)	CE	Synthetic Plies	Smooth	-40 °F	275 mm	26.5 Inch-Hg	3.02 kg/m	63.5 mm	16 bar	81 mm	Hose Products Division
7630-3000	Backordered	Backordered	$46.77/foot	FT	Beverage Transfer	3	FDA, DM, CE, 3A,MHLW, REACH, GMP	3.7	Food & Beverage (Alcohol/Spirits [concentration up to 96%])	248 °F	White	750 psi	Beverage (Wine)	3A	Galvanized Wire Helix	Smooth	-40 °C	330 mm	26.5 Inch-Hg	2.63 lb/ft	76 mm	250 psi	94.0 mm	Hose Products Division
7630-4000	Backordered	Backordered	$61.86/foot	FT	Beverage Transfer	4	FDA, DM, CE, 3A,MHLW, REACH, GMP	4.72	Food & Beverage (Wine)	120 °C	White	48 bar	Beverage (Wine)	REACH	Synthetic Plies	Smooth	-40 °F	450 mm	90 kPa	3.52 lb/ft	102 mm	250 psi	120 mm	Hose Products Division
