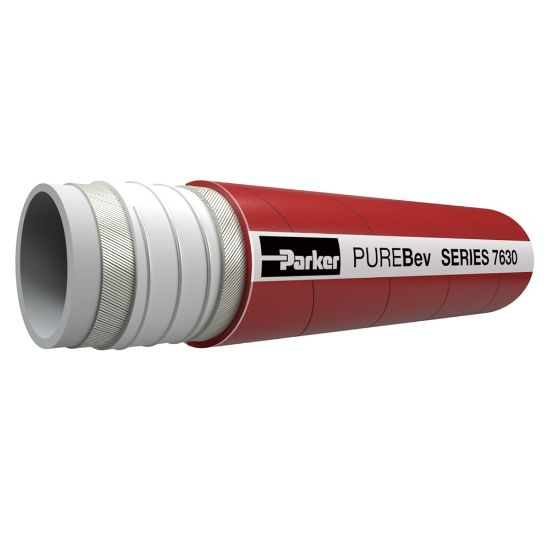

7630-4000 - PUREBev Hose Series 7630

PUREBev Series 7630 is a flexible delivery and suction hose designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	Backordered

SKU 7630-4000

$61.86/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	4
Meets Industry Specifications	FDA, DM, CE, 3A,MHLW, REACH, GMP	Hose O.D. (inch)	4.72
Application	Beverage Transfer	Media	Food & Beverage (Wine)
Application	Beverage (Wine)	Specifications Met	REACH
Minimum Burst Pressure	48 bar	Minimum Operating Temperature	-40 °F
Hose Reinforcement Material	Synthetic Plies	Cover Structure	Smooth
Minimum Bend Radius	450 mm	Weight	3.52 lb/ft
Outside Diameter	120 mm	Vacuum Pressure Rating	90 kPa
Maximum Operating Pressure	250 psi	Inside Diameter	102 mm
Hose Inner Tube Material	White	Maximum Operating Temperature	120 °C
Division	Hose Products Division
