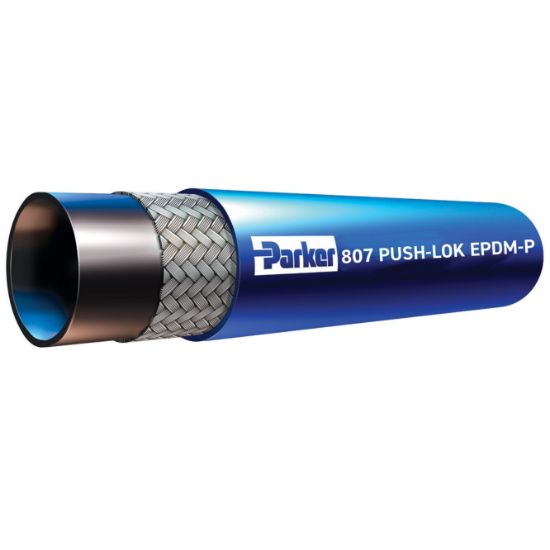

807-10-BLU-RL - Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 807-10-BLU-RL

$7.31/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Pressure	1.03 MPa
Application	Media Transfer	Hose Outside Diameter	23.1 mm
Specifications Met	UL94 V-0 Flame resistance rating	Division	Hose Products Division
Weight	0.30 kg/m	Media	air, water (including PCW), coolant solutions
Maximum Operating Temperature	212 °F	Compatible Fitting	82 series
Hose Inner Tube Material	Black EPDM peroxide cured	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	88.9 mm	Hose Reinforcement Material	One fiber braid
Cover Material	Blue synthetic rubber smooth finish
