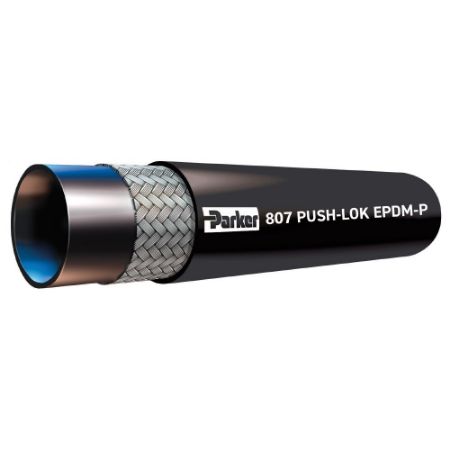

Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s 807 Push-Lok EPDM-P Hose is the newest addition to our Push-Lok family and is a low-pressure, peroxide-cured EPDM, synthetic rubber hose. Ideal for use within thermal management systems. Expertly designed, it facilitates the transfer of air (including dry air), water (including PCW), and coolant solutions for various types of equipment including electronics. The specially formulated EPDM tube is designed for enhanced fluid purity of industrial coolants and complexity with hot air, phosphate ester, and processing coolant water (PCW).

Features/Benefits:

• Peroxide cured EPDM tube for fluid purity

• Designed for flexibility and ease of routing

• UL94 V-0 flame resistance rated cover offered in black

• 150 psi (100 psi in size 16) working pressure with 4:1 safety factor

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Media	Hose Inner Tube Material	Specifications Met	Hose Outside Diameter	Hose Reinforcement Material	Application	Minimum Bend Radius	Cover Material	Minimum Operating Temperature	Weight	Maximum Operating Pressure	Division	Compatible Fitting	Maximum Operating Temperature
807-10-BLK-RL	Backordered	Backordered	$7.31/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	23.1 mm	One fiber braid	DI water and glycol based coolant solutions, air, phosphate ester	88.9 mm	Black synthetic rubber smooth finish	212 °C	0.30 kg/m	150 psi	Hose Products Division	82 series	212 °F
807-10-BLU-RL	Backordered	Backordered	$7.31/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	23.1 mm	One fiber braid	Media Transfer	88.9 mm	Blue synthetic rubber smooth finish	-40 °F	0.30 kg/m	1.03 MPa	Hose Products Division	82 series	212 °F
807-10-RED-RL	Backordered	Backordered	$7.31/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	0.91 inch	One fiber braid	Media Transfer	88.9 mm	Red synthetic rubber smooth finish	212 °C	0.30 kg/m	150 psi	Hose Products Division	82 series	100 °C
807-12-BLK-RL	Backordered	Backordered	$9.12/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	0.91 inch	One fiber braid	DI water and glycol based coolant solutions, air, phosphate ester	4.5 inch	Black synthetic rubber smooth finish	-40 °F	0.20 lb-ft	150 psi	Hose Products Division	82 series	100 °C
807-12-BLU-RL	Backordered	Backordered	$9.12/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	23.1 mm	One fiber braid	Media Transfer	4.5 inch	Blue synthetic rubber smooth finish	-40 °F	0.20 lb-ft	1.03 MPa	Hose Products Division	82 series	212 °F
807-12-RED-RL	Backordered	120 in stock	$11.85/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	23.1 mm	One fiber braid	Media Transfer	114.3 mm	Red synthetic rubber smooth finish	-40 °F	0.20 lb-ft	150 psi	Hose Products Division	82 series	212 °F
807-16-BLK-RL	Backordered	74 in stock	$15.71/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	32.6 mm	One fiber braid	DI water and glycol based coolant solutions, air, phosphate ester	165.1 mm	Black synthetic rubber smooth finish	-40 °F	.306 lb-ft	10.34 bar	Hose Products Division	82 series	100 °C
807-16-BLU-RL	Backordered	Backordered	$12.09/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	32.6 mm	One fiber braid	Media Transfer	165.1 mm	Blue synthetic rubber smooth finish	212 °C	.042 kg/m	10.34 bar	Hose Products Division	82 series	100 °C
807-16-RED-RL	Backordered	Backordered	$12.09/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	1.28 inch	One fiber braid	Media Transfer	6.5 inch	Red synthetic rubber smooth finish	212 °C	.042 kg/m	10.34 bar	Hose Products Division	82 series	212 °F
807-4-BLK-RL	Backordered	Backordered	$3.67/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	12.7 mm	One fiber braid	DI water and glycol based coolant solutions, air, phosphate ester	25.4 mm	Black synthetic rubber smooth finish	212 °C	.011 kg/m	150 psi	Hose Products Division	82 series	100 °C
807-4-BLU-RL	Backordered	Backordered	$3.67/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	0.50 inch	One fiber braid	Media Transfer	25.4 mm	Blue synthetic rubber smooth finish	212 °C	.083 lb-ft	1.03 MPa	Hose Products Division	82 series	100 °C
807-4-RED-RL	Backordered	Backordered	$3.67/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	0.50 inch	One fiber braid	Media Transfer	1.0 inch	Red synthetic rubber smooth finish	-40 °F	.011 kg/m	1.03 MPa	Hose Products Division	82 series	100 °C
807-6-BLK-RL	Backordered	100 in stock	$6.03/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	15.9 mm	One fiber braid	DI water and glycol based coolant solutions, air, phosphate ester	38.1 mm	Black synthetic rubber smooth finish	212 °C	.112 lb-ft	1.03 MPa	Hose Products Division	82 series	212 °F
807-6-BLU-RL	Backordered	Backordered	$4.64/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	0.63 inch	One fiber braid	Media Transfer	38.1 mm	Blue synthetic rubber smooth finish	-40 °F	.015 kg/m	150 psi	Hose Products Division	82 series	212 °F
807-6-RED-RL	Backordered	83 in stock	$6.03/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	15.9 mm	One fiber braid	Media Transfer	38.1 mm	Red synthetic rubber smooth finish	-40 °F	.015 kg/m	150 psi	Hose Products Division	82 series	100 °C
807-8-BLK-RL	Backordered	Backordered	$5.19/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	20.6 mm	One fiber braid	DI water and glycol based coolant solutions, air, phosphate ester	2.8 inch	Black synthetic rubber smooth finish	212 °C	0.17 lb-ft	150 psi	Hose Products Division	82 series	100 °C
807-8-BLU-RL	Backordered	Backordered	$5.19/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	20.6 mm	One fiber braid	Media Transfer	2.8 inch	Blue synthetic rubber smooth finish	212 °C	0.25 kg/m	1.03 MPa	Hose Products Division	82 series	100 °C
807-8-RED-RL	Backordered	Backordered	$5.19/foot	FT	air, water (including PCW), coolant solutions	Black EPDM peroxide cured	UL94 V-0 Flame resistance rating	0.81 inch	One fiber braid	Media Transfer	2.8 inch	Red synthetic rubber smooth finish	-40 °F	0.17 lb-ft	150 psi	Hose Products Division	82 series	212 °F
