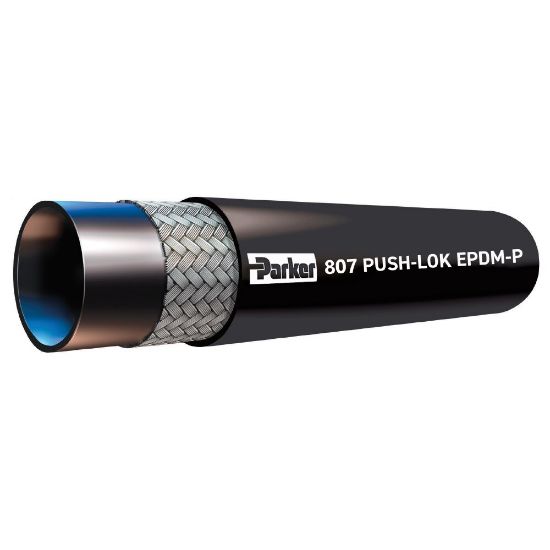

807-12-BLK-RL - Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 807-12-BLK-RL

$9.12/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Specifications Met	UL94 V-0 Flame resistance rating
Hose Outside Diameter	0.91 inch	Hose Reinforcement Material	One fiber braid
Application	DI water and glycol based coolant solutions, air, phosphate ester	Cover Material	Black synthetic rubber smooth finish
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	4.5 inch
Weight	0.20 lb-ft	Maximum Operating Pressure	150 psi
Division	Hose Products Division	Compatible Fitting	82 series
Maximum Operating Temperature	100 °C	Media	air, water (including PCW), coolant solutions
Hose Inner Tube Material	Black EPDM peroxide cured
