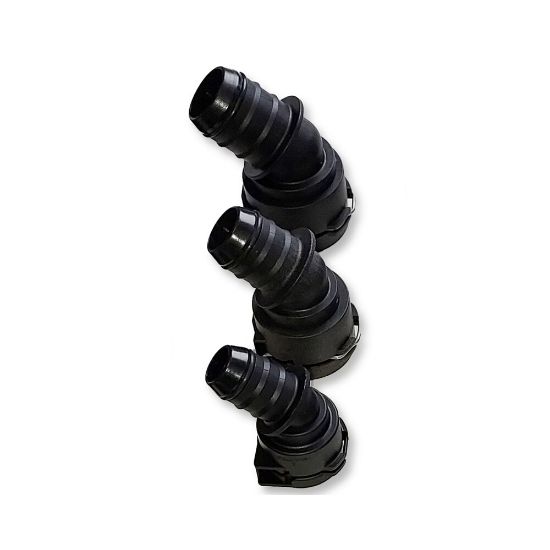

FVDA121445 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU FVDA121445

$9.34/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	FVDA
Connection 1 Hose Inside Diameter	0.472" (I.D.)	Length (inch)	2.01"
Shape	Elbow 45°	Maximum Operating Pressure	125
Vacuum Pressure Rating	n/a	Division	Parflex Division
Fitting Type	Barb / Beaded Barb / Mini Barb	Shape	Elbow 45°
Industry	Transportation	Application	Fluid Transfer
Brand	Parker	Product Style	VDA
Configuration	Hose to VDA	Product Series	ECH
Materials of Construction	High Performance Glass Filled Polyamide	Product Type	Hose Fitting
Connection Size	n/a	Length	2.01
Minimum Operating Temperature	-40	Connection 1 Size	0.472 inch Hose I.D.
Notes	Socket Size: 0.472" / 12 mm	Division	Parflex Division
Size	-14	Connection Type	Push-to-Connect
For Fluid Type	Coolants (Water Based)	Seal Material	EPDM (O-Ring)
Maximum Operating Temperature	212
