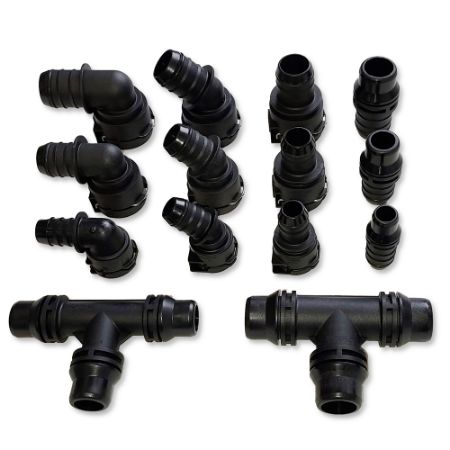

Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parflex ECH fittings are VDA style connectors that are quickly becoming the standard in E-mobility. Push to connect VDA fittings provide full flow with no restriction for minimized pressure drops and foolproof push to connect installation. Parflex offers a hose assembly machine built specifically for this series. Contact the division for more information.
Features:
• Quick-connect design for speedier installations
• Facilitates unrestricted flow and minimized pressure drops
• Reduced weight over alternatives
• Color and material offer maximum UV resistance
Markets:
• E-mobility
• Transportation
Applications:
• Battery cooling systems on electric buses
Read More...Features:
• Quick-connect design for speedier installations
• Facilitates unrestricted flow and minimized pressure drops
• Reduced weight over alternatives
• Color and material offer maximum UV resistance
Markets:
• E-mobility
• Transportation
Applications:
• Battery cooling systems on electric buses
| Action | SKU | Availability | Partner Available | Price | UOM | Length (inch) | Shape | Product Style | Connection 1 Hose Inside Diameter | Notes | Length | Connection 1 Size | Product Style | Minimum Operating Temperature | Brand | Maximum Operating Temperature | Size | Seal Material | Connection Size | Product Type | Shape | Division | Vacuum Pressure Rating | For Fluid Type | Fitting Type | Connection Type | Division | Industry | Materials of Construction | Application | Product Series | Configuration | Maximum Operating Pressure | Connection 2 Type | Connection 1 Type | Connection 2 Thread Size | Connection 2 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FVDA121400 | Backordered | Backordered | $9.34/each | EA | 2.10" | Straight | FVDA | 0.472" (I.D.) | Socket Size: 0.472" / 12 mm | 2.10 | 0.472 inch Hose I.D. | VDA | -40 | Parker | 212 | -14 | EPDM (O-Ring) | n/a | Hose Fitting | Straight | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| FVDA121445 | Backordered | Backordered | $9.34/each | EA | 2.01" | Elbow 45° | FVDA | 0.472" (I.D.) | Socket Size: 0.472" / 12 mm | 2.01 | 0.472 inch Hose I.D. | VDA | -40 | Parker | 212 | -14 | EPDM (O-Ring) | n/a | Hose Fitting | Elbow 45° | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| FVDA121490 | Backordered | Backordered | $9.34/each | EA | 1.22" | Elbow 90° | FVDA | 0.472" (I.D.) | Socket Size: 0.472" / 12 mm | 1.22 | 0.472 inch Hose I.D. | VDA | -40 | Parker | 212 | -14 | EPDM (O-Ring) | n/a | Hose Fitting | Elbow 90° | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| FVDA161800 | Backordered | Backordered | $10.64/each | EA | 2.28" | Straight | FVDA | 0.629" (I.D.) | Socket Size: 0.629" / 16 mm | 2.28 | 0.629 inch Hose I.D. | VDA | -40 | Parker | 212 | -18 | EPDM (O-Ring) | n/a | Hose Fitting | Straight | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 86 | |||||
| FVDA161845 | Backordered | Backordered | $10.64/each | EA | 2.41" | Elbow 45° | FVDA | 0.629" (I.D.) | Socket Size: 0.629" / 16 mm | 2.41 | 0.629 inch Hose I.D. | VDA | -40 | Parker | 212 | -18 | EPDM (O-Ring) | n/a | Hose Fitting | Elbow 45° | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| FVDA161890 | Backordered | Backordered | $10.64/each | EA | 1.60" | Elbow 90° | FVDA | 0.629" (I.D.) | Socket Size: 0.629" / 16 mm | 1.60 | 0.629 inch Hose I.D. | VDA | -40 | Parker | 212 | -18 | EPDM (O-Ring) | n/a | Hose Fitting | Elbow 90° | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| FVDA202200 | Backordered | Backordered | $12.22/each | EA | 2.45" | Straight | FVDA | 0.787" (I.D.) | Socket Size: 0.787" / 20 mm | 2.45 | 0.787 inch Hose I.D. | VDA | -40 | Parker | 212 | -22 | EPDM (O-Ring) | n/a | Hose Fitting | Straight | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| FVDA202245 | Backordered | Backordered | $12.22/each | EA | 2.58" | Elbow 45° | FVDA | 0.787" (I.D.) | Socket Size: 0.787" / 20 mm | 2.58 | 0.787 inch Hose I.D. | VDA | -40 | Parker | 212 | -22 | EPDM (O-Ring) | n/a | Hose Fitting | Elbow 45° | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| FVDA202290 | Backordered | 3 in stock | $15.89/each | EA | 1.69" | Elbow 90° | FVDA | 0.787" (I.D.) | Socket Size: 0.787" / 20 mm | 1.69 | 0.787 inch Hose I.D. | VDA | -40 | Parker | 212 | -22 | EPDM (O-Ring) | n/a | Hose Fitting | Elbow 90° | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| MVDA1205-08 | Backordered | Backordered | $9.91/each | EA | 1.75" | Straight | MVDA Adapter | 0.472" (I.D.) | 1.75 | 0.472 inch Hose I.D. | VDA | -40 | Parker | 212 | 12 | EPDM (O-Ring) | -8 | Port Adapter | Straight | Parflex Division | n/a | Coolants (Water Based) | Port Adapter | Male VDA to SAE-ORB | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Port Adapter | 125 | Male SAE-ORB | Male VDA | 3/4-16 | 1/2 | ||
| MVDA121400 | Backordered | Backordered | $6.73/each | EA | 2.04" | Straight | MVDA | 0.472" (I.D.) | Spigot Size: 0.472" / 12 mm | 2.04 | 0.472 inch Hose I.D. | VDA | -40 | Parker | 212 | -14 | EPDM (O-Ring) | n/a | Hose Fitting | Straight | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| MVDA161800 | Backordered | Backordered | $6.79/each | EA | 2.20" | Straight | MVDA | 0.629" (I.D.) | Spigot Size: 0.629" / 16 mm | 2.20 | 0.629 inch Hose I.D. | VDA | -40 | Parker | 212 | -18 | EPDM (O-Ring) | n/a | Hose Fitting | Straight | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | |||||
| MVDA16T | Backordered | Backordered | $8.40/each | EA | 4.25" | Tee | MVDA | 0.629" (I.D.) | 4.25 | 0.629 inch Hose I.D. | VDA | -40 | Parker | 212 | -18 | EPDM (O-Ring) | n/a | Hose Fitting | Tee | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | ||||||
| MVDA202200 | Backordered | Backordered | $7.65/each | EA | 2.40" | Straight | MVDA | 0.787" (I.D.) | Spigot Size: 0.787" / 20 mm | 2.40 | 0.787 inch Hose I.D. | VDA | -40 | Parker | 212 | -22 | n/a | Hose Fitting | Straight | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 | ||||||
| MVDA20T | Backordered | Backordered | $9.81/each | EA | 4.33" | Tee | MVDA | 0.787" (I.D.) | 4.33 | 0.787 inch Hose I.D. | VDA | -40 | Parker | 212 | -22 | n/a | Hose Fitting | Tee | Parflex Division | n/a | Coolants (Water Based) | Barb / Beaded Barb / Mini Barb | Push-to-Connect | Parflex Division | Transportation | High Performance Glass Filled Polyamide | Fluid Transfer | ECH | Hose to VDA | 125 |
