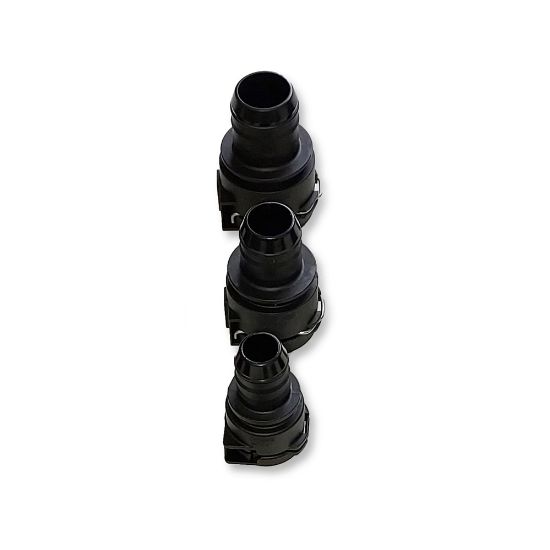

FVDA202200 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU FVDA202200

$12.22/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Connection 1 Hose Inside Diameter	0.787" (I.D.)	Length (inch)	2.45"
Product Style	FVDA	Length	2.45
Product Type	Hose Fitting	Minimum Operating Temperature	-40
Product Style	VDA	Connection 1 Size	0.787 inch Hose I.D.
Notes	Socket Size: 0.787" / 20 mm	Division	Parflex Division
Size	-22	Maximum Operating Temperature	212
For Fluid Type	Coolants (Water Based)	Seal Material	EPDM (O-Ring)
Connection Size	n/a	Maximum Operating Pressure	125
Vacuum Pressure Rating	n/a	Shape	Straight
Connection Type	Push-to-Connect	Fitting Type	Barb / Beaded Barb / Mini Barb
Industry	Transportation	Division	Parflex Division
Brand	Parker	Application	Fluid Transfer
Configuration	Hose to VDA	Product Series	ECH
Materials of Construction	High Performance Glass Filled Polyamide
